Applications
Hot water, steam, hot air up to 130º
Advantages
Compensate thermal elongation Isolate vibrations and absorb pressure surges Correct misalignments

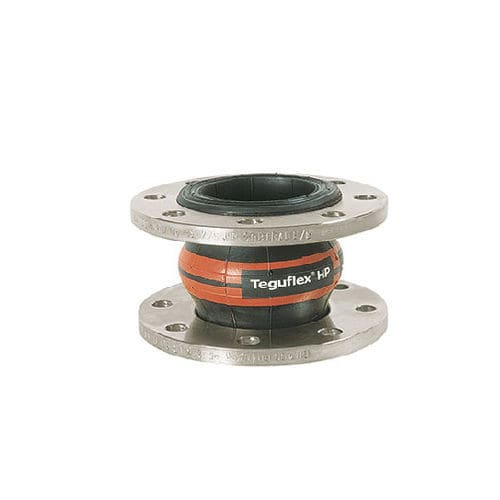

Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
EPDM special, black, fluted
Reinforcement
Aramid
Cover
EPDM special, black, smooth, weather and ozone resistant
Additional information
Vacuum ring (316Ti/316L), flameguards, PTFE safety shields on request.
Type approval: DNV-GL
PED (2014/68/EU)
Couplings Fittings
Turnable flanges in zinc plated carbon steel S235JR/S275JR
Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc.
EN 1092 PN6/10/16- ASME B16.5 150lbs.
Other types on request.
