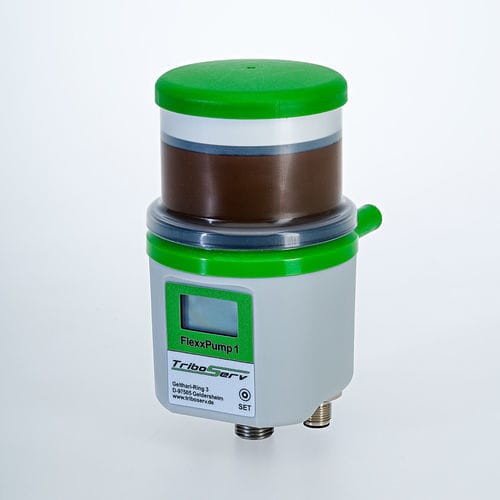

Single-point lubricator FlexxPump1 125 series

electromechanicalprogressivebattery-powered

for the direct supply of one lubrication point The FlexxPump4 N is a highly efficient, microprocessor-controlled lubricator. The power supply for the FlexxPump1 N is 24 VDC using an M12x1 connector. The lubricator is suitable for the accurate and demand-oriented direct supply of one lubrication point with grease or oil. Due to the high operating pressure of up to 70 bar (1015 psi), the FlexxPump4 N can also be used in combination with progressive lubricant distributors to supply several lubrication points. The following operating modes can be flexibly set on the FlexxPump1 N: • Hour-Mode -h- (setting of a pause time between two lubrication cycles and setting of the number of cycles during a dispensing cycle) • Empty-Time-Mode Et (setting of an emptying time in months) • Pulse-Mode PUL (control of the FlexxPump4 N via TriboServ FlexxControl or PLC) Lubricants: • Greases up to NLGI class 2 • Oils up to 30,000 mm²/s Applications: • Rolling and plain bearing lubrication • Linear guides • Ball screws • Racks and pinions • Chains
