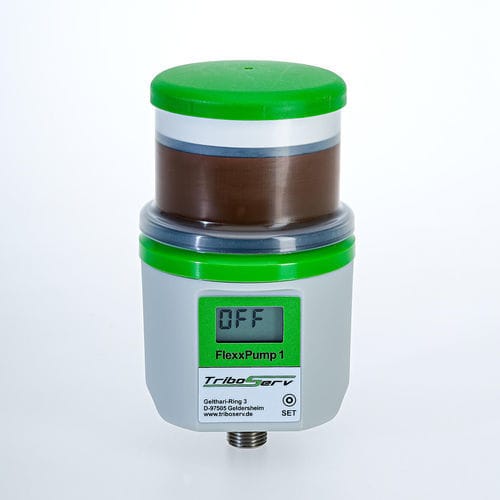

Single-point lubricator FlexxPump1 series

electromechanicalautomaticprogressive

for direct supply of one lubrication point The FlexxPump1 B is a highly efficient, microprocessor-controlled single-point lubricator. The power supply for the FlexxPump1 B is provided by a 4,5 V battery pack. The lubricator is suitable for the accurate and demand-oriented direct supply of grease or oil of one lubrication point. Due to the high operating pressure of up to 30 bar (435 psi), the FlexxPump1 B can also be used in combination with progressive lubricant distributors to supply several lubrication points. The following operating modes can be flexibly set on the FlexxPump1 B: • Hour-Mode -h- (setting of a pause time between two lubrication cycles and setting of the number of cycles during a dispensing cycle) • Empty-Time-Mode Et (setting of an emptying time in months) The lubricator can optionally be equipped with an M12x1 connector as a connection for an LED cable. This enables remote monitoring of the lubricator in addition to the display. Lubricants: • Greases up to NLGI class 2 • Oils up to 30,000 mm²/s Applications: • Rolling and plain bearing lubrication • Linear guides • Ball screws • Racks and pinions • Chains
