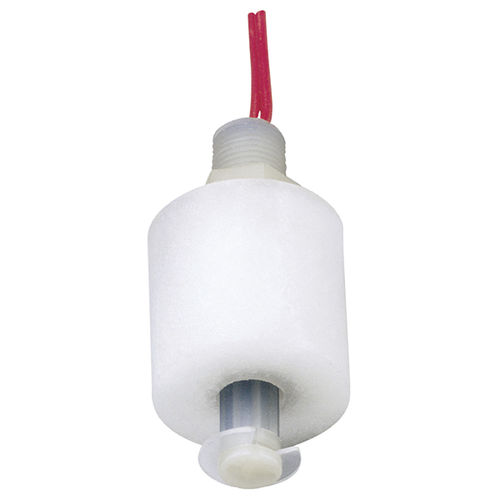

Magnetic float level switch LS-3 for liquidsFDAPVC
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Approvals
- FDA
- Material
- plastic, PVC
- Mounting
- vertical
- Other characteristics
- compact, IP64
- Process temperature
Max.: 121 °C
(250 °F)Min.: -40 °C
(-40 °F)- Process pressure
Max.: 10 bar
(145.04 psi)Min.: 3 bar
(43.51 psi)
Description
These float switch for vertical installation have one switch point and are available in a wide range of materials.
They are inexpensive and are ideal for confined spaces.
Compact plastic construction – reliable and cost effective with NPT or G thread. Available with FDA/NSF approved materials on request.
Opener / Closer
SPST 50 VA/0.5A/250 VAC
Change-over switch
SPDT 20 VA/0.5A/250 VAC
Switch function
factory setting is NO (normally open)
NO or NC (normally closed) can be selected by reversing the float
Fly lead / cable
PVC, AWG 22, Length 60 cm / PVC, 0.34 mm²
Fly lead: -40 to +121°C
Medium density
≥ 450 kg/m³
Mountig direction
Vertical
Tube length L
fixed Tube length (L=54 mm)
Process connection
G 1/8″ / 1/8″ NPT / M12x1.75
Material
Polysulfon, Nylon, PP
Catalogs
Data Sheet LS-3
3 Pages
