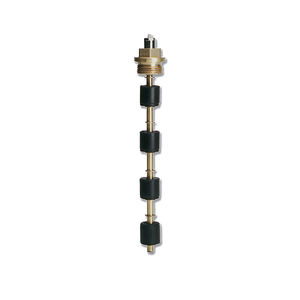

Magnetic float level switch LS-74780for liquidsplasticvertical
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Material
- plastic
- Mounting
- vertical
- Other characteristics
- single-point, rugged, IP64
- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)- Process pressure
Max.: 1 bar
(14.5 psi)Min.: 0 bar
(0 psi)
Description
Robust single level float switch made from specially developed plastics for aggressive or ultra-pure liquids.
Opener / Closer
SPST 20 VA/0.5A/250 VAC
Switch function
factory setting is NO (normally open)
NO or NC (normally closed) can be selected by reversing the float
Fly lead
PVC AWG 18, Length 60 cm
Medium density
≥ 850 kg/m³
Mountig direction
vertical
Tube length L
fixed Tube length (L=87.5 mm)
Process connection
¼” NPT
Catalogs
Data Sheet LS-74780
1 Pages
Data Sheet LS-1900T
1 Pages
