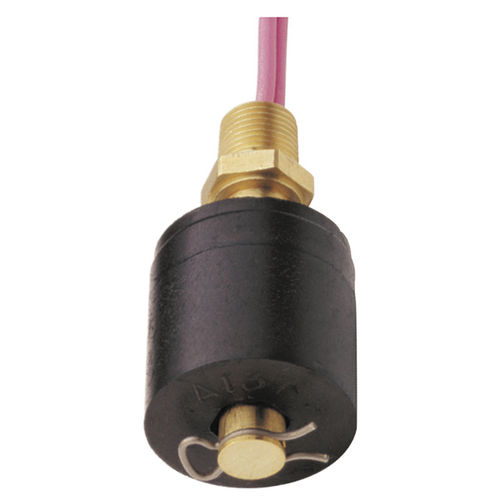

Magnetic float level switch LS-1700for waterfor oilfor tanks
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for water, for oil
- Applications
- for tanks
- Material
- PVC, brass
- Mounting
- vertical
- Other characteristics
- single-point, rugged, IP64
- Process temperature
Max.: 110 °C
(230 °F)Min.: -40 °C
(-40 °F)- Process pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)
Description
Robust single level float switch, ideal for flat tanks and limited installation space. For use in oil and water.
Opener / Closer
SPST 50 VA/0.5A/250 VAC
Switch function
factory setting is NO (normally open)
NO or NC (normally closed) can be selected by reversing the float
PVC-Fly lead / cabel
FEP, AWG 20, Length 60 cm / PVC, 0.34 mm²
Medium density
≥ 450 kg/m³
Tube length L
fixed Tube length (L=53 mm)
Process connection
G 1/8″ / 1/8″ NPT
Catalogs
LS-1700
1 Pages
