Line-interactive UPS Pro

single-phaseACvalve-regulated

Overview

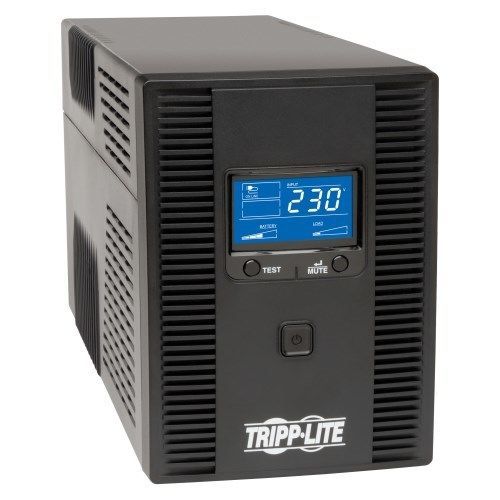

The Tripp Lite SMX1500LCDT is a 230V line-interactive UPS delivering 1.5 kVA / 900 W of backup power and AC protection for electronic equipment. It protects against blackouts, brownouts, surges and line noise, switching to battery in milliseconds to allow safe file saves and orderly shutdowns. Automatic Voltage Regulation (AVR) stabilizes output across a wide input range, while EMI/RFI filtering and surge suppression protect sensitive devices. A front-panel LCD provides real-time status for voltage, load and battery.

Key Features

• Line-interactive topology for battery backup and surge/noise protection
• Rated output: 1500 VA / 900 W
• Nominal output: 230 V; automatic frequency selection 50/60 Hz
• Automatic Voltage Regulation (AVR) corrects under- and overvoltages across 170–280 V input range
• Front-panel LCD: Input/Output voltage, Frequency, AVR status, Battery voltage, Load (W and %), Estimated runtime
• Communications: USB (HID) port for monitoring and unattended shutdown with PowerAlert® software (downloadable)
• RJ45 telephone/Ethernet suppression (1 line TEL/DSL; 10/100Base-T)
• EMI/RFI filtering and 455-joule AC surge suppression
• Cold-start capable (start on battery)
• Internal, hot-swap replaceable batteries

Package Includes

• SMX1500LCDT UPS
• USB cable
• C13-to-C14 power cable
• Owner's manual

Applications

• Home and office desktop systems
• Media centers and home entertainment equipment
• Edge servers and small network/server protection
