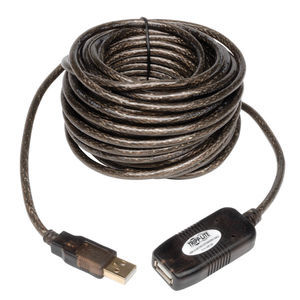

Extension electrical cable U026-20M

USB 2.0straightblack

Overview
The U026-20M is a 20-meter (65.6 ft) USB 2.0 active extension/repeater cable designed to extend a USB device cable beyond the 5 m (16 ft) passive limit without signal degradation. Bus-powered with a built-in signal repeater, it regenerates USB signals to preserve data integrity and maintain High-Speed performance. Two cables can be daisy-chained for distances up to 40 m (131 ft). Complies with USB 2.0 specifications and is backward compatible with USB 1.1. Provides up to 90 mA to the connected device; devices requiring more current must use their own power supply or a powered USB 2.0 hub.

Key Features

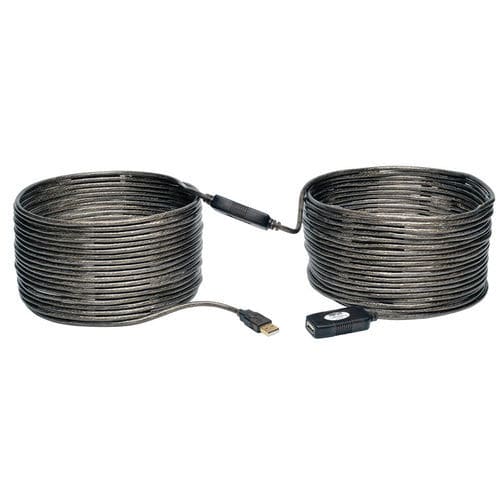

• Maximum Extension Distance: Daisy-chain up to two 20 m cables for a total extension up to 40 m (131 ft)
• Error-Free Signal Transfer: Supports USB 2.0 High-Speed data rates up to 480 Mbps; supports legacy USB 1.1 devices
• Universal Compatibility: Compatible with hosts and devices using USB A connectors; backward compatible to USB 1.1
• Power Capacity: Supplies up to 90 mA to connected device (use powered hub or external supply if more power is required)
• Premium Cabling: Double-shielded foil-and-braid construction for EMI/RFI protection
• Gold-Plated Connectors: Gold-plated USB A connectors with gold-plated copper contacts and integral strain relief
• Signal Booster: Built-in repeater/regenerator to maintain long-distance USB signal integrity
• RoHS Compliant
• Plug-and-Play: No drivers or software required

System Requirements

• USB 2.0 port and USB 2.0 device required to achieve High-Speed (480 Mbps). USB 1.1 ports/devices supported at lower speeds.
• Power: Cable provides up to 90 mA to the connected device; if more power is required use the device's power supply or a powered USB 2.0 hub.

Package Includes

• 20-meter (65 ft) USB 2.0 A/A Hi-Speed Active Extension / Repeater Cable (U026-20M)

Warranty

• 3-year limited warranty

Technical Specifications

• UPC Code: 037332167668
• Technology: USB 2.0 (High Speed)
• Cable Type: Active
• Side A - Connector 1: USB A (MALE)
• Side B - Connector 1: USB A (FEMALE)
• Connector Style: Straight
• Cable Jacket Color: Black
• Cable Length: 65.6 ft (20 m)
• Shipping Dimensions (H x W x D, in.): 9.10 x 10.60 x 0.10
• Shipping Weight (lbs): 1.51
• Operating Temperature Range: 28.4° to 125.6°F (-2° to 52°C)
• Storage Temperature Range: -4° to 132.8°F (-20° to 56°C)
• Relative Humidity: 20 to 80% RH, non-condensing
• Product Compliance: RoHS
• Product Warranty Period (Worldwide): 3-year limited warranty
