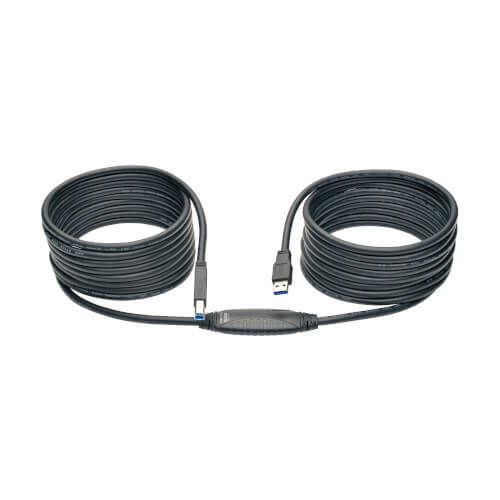

Electrical data cable U328-025

extensionUSBB USB

Overview
This USB 3.0 Active A/B cable overcomes the 16-foot (5 m) USB distance limitation with an integrated active repeater. It enables USB printers and other devices to be positioned up to 25 ft. (7.62 m) from the host in a single, non-daisy-chainable run while maintaining full SuperSpeed 5 Gbps throughput. Backward compatible with USB 2.0 and USB 1.1. Plug-and-play on Windows and macOS.

Features

• Connect a computer to a printer or other USB device up to 25 ft. (7.62 m) away
• SuperSpeed USB 3.0 (5 Gbps), Hi-Speed USB 2.0 and USB 1.1 compatible
• Built-in active repeater maintains 5 Gbps signal integrity over the full cable length
• USB A to USB B connections (A male to B male)
• Plug-and-play; Windows and macOS compatible
• Cable weight and repeater pod physical details provided in technical specifications

System Requirements

• A USB 3.0 host port and a USB 3.0 device with a Type B jack are required to achieve USB 3.0 speeds; using USB 2.0 or 1.1 ports/devices will limit speed accordingly
• Not intended for use with certain gaming consoles that restrict external extension devices

Package Includes

• 25-ft. (7.62 m) SuperSpeed USB 3.0 A/B Active Device Cable (A Male to B Male)

Technical specifications

• UPC Code: 037332181831
• Technology: USB 3.x (SuperSpeed USB 3.0 compatible with USB 2.0 and 1.1)
• Cable Type: Active
• Side A - Connector 1: USB 3.0 A (Male)
• Side B - Connector 1: USB 3.0 B (Male)
• Connector Style: Straight
• Cable Jacket Color: Black
• Cable Length: 25 ft. (7.62 m)
• Cable Length (m): 7.62
• Weight (product): 1 lb.
• Shipping Weight: 0.50 kg
• Shipping Dimensions (H x W x D): 27.00 x 23.01 x 1.27 cm
• Repeater pod dimension: 16.75 x 57.3 x 31.7 mm (0.7 x 2.3 x 1.3 in.)
• RoHS compliant
• Warranty: 3-year limited warranty
