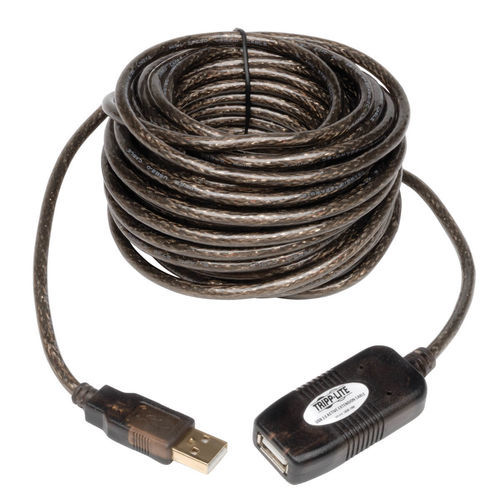

Extension electrical cable U026-10M

USB 2.0straightblack

Overview
This USB 2.0 active extension (repeater) cable extends USB device reach while preserving Hi-Speed signal integrity. Bus-powered and designed for daisy-chaining (up to four cables), it increases passive USB length limits up to a total of 39.92 m (131 ft) when combined.

Features

• 10 m (33 ft) active USB 2.0 extension cable, USB-A male to USB-A female
• Supports Hi-Speed USB 480 Mbps; backward compatible with USB 1.1 (12 Mbps)
• Integrated repeater maintains signal quality and timing specifications
• Bus-powered — no external power required for devices drawing ≤150 mA
• Plug-and-play with major operating systems
• Supports daisy-chaining up to four cables to extend total reach

System Requirements

• USB 2.0–enabled computer (Windows or Mac)
• Devices requiring >150 mA must use their own power supply or connect via a powered USB 2.0 hub

Package Includes

• 10 m (33 ft) USB 2.0 A/A Hi-Speed Active Extension / Repeater Cable

Certifications

• RoHS compliant

Technical specifications

• OVERVIEW
  UPC Code: 037332173263
  Technology: USB 2.0 (High Speed)
  Cable Type: Active
• CONNECTIONS
  Side A - Connector 1: USB A (MALE)
  Side B - Connector 1: USB A (FEMALE)
  Connector Style: Straight
• PHYSICAL
  Cable Jacket Color: Black
  Cable Length (ft.): 32.8
  Shipping Dimensions (hwd / in.): 2.00 x 5.00 x 6.00
  Shipping Weight (lbs.): 0.76
• ENVIRONMENTAL
  Operating Temperature Range: 28.4° to 125.6°F (-2° to 52°C)
  Storage Temperature Range: -4° to 132.8°F (-20° to 56°C)
  Relative Humidity: 20% to 80% RH, Non-condensing
• STANDARDS & COMPLIANCE
  Product Compliance: RoHS
• WARRANTY & SUPPORT
  Product Warranty Period (Worldwide): 3-year limited warranty
