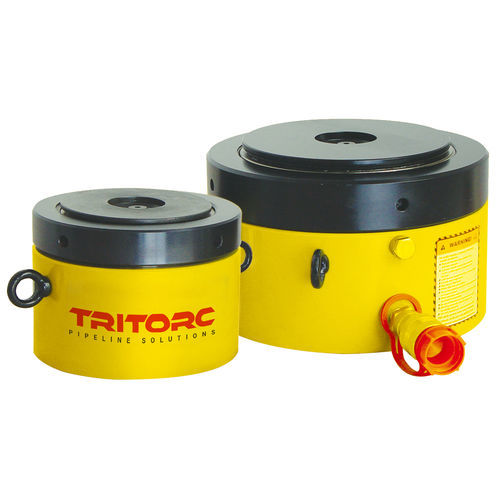

Hydraulic cylinder SLLH series
pistonsingle-actinglow-profile

hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Technology
piston
Configuration
single-acting
Other characteristics
low-profile, with lock-nut
Stroke

Min.: 45 mm (1.772 in)

Max.: 50 mm (1.969 in)

Force

Min.: 60 tf

Max.: 520 tf

Pressure

700 bar (10,152.6 psi)

Description

Tritorc cylinders operate with a maximum pressure of 700 Bar. With Single and Double acting ranges Tritorc cylinders show versatility in operational requirements and fulfill the needs of the user. All single acting cylinders are spring return and double acting cylinders are oil return.
