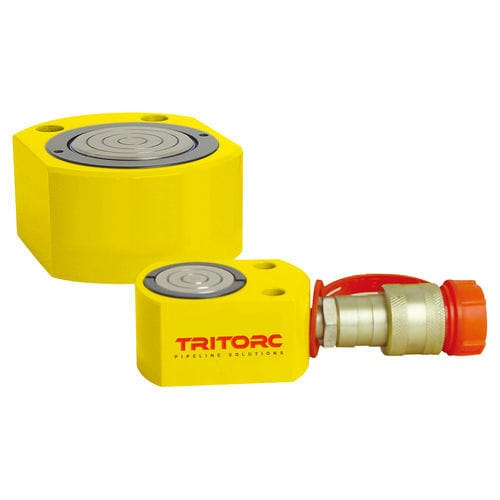

Hydraulic cylinder SLFH seriespistonsingle-actingflat
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting
- Other characteristics
- flat
- Stroke
Min.: 11 mm
(0.433 in)Max.: 16 mm
(0.63 in)- Pressure
700 bar
(10,152.6 psi)- Force
Min.: 10 tf
Max.: 150 tf
Description
Tritorc cylinders operate with a maximum pressure of 700 Bar.
With Single and Double acting ranges Tritorc cylinders show versatility in operational requirements and fulfill the needs of the user.
All single acting cylinders are spring return and double acting cylinders are oil return.
