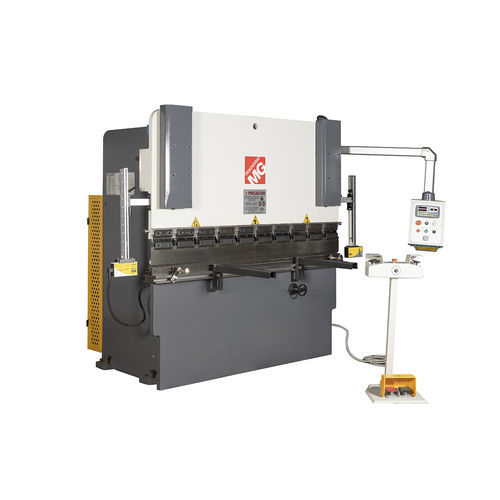

Hydraulic press brake WC67Y 40/2000

horizontal

WC67Y 40/2000 Hydraulic press brake - Steel structure to give rigidity and stability, consolidated with special treatment against vibrations and temperature changes. - Anti-torsion bar. - Integrated hydraulic transmission system, equipped with several tanks. - Electrically adjustable rear stop with fine adjustment and digital display. - Mechanical adjustment of the tranche independently of the cylinder to allow the superior closing. - System of descending work of fixed table and mobile upper trancha. - Motorized penetration stop with Numeric Control that controls the 2 preselector stops of the rear stop and the vertical penetration stop with 99 programs and 20 cycles in each program. - Top with sliding fingers on high precision skates. - Bimanual control, with emergency stop. - Gooseneck on all models. OPTIONS: AKAS - SECURITY SYSTEM * DEPENDING ON STOCK, THE MACHINE CAN BE IN BLUE OR GRAY COLORS PACKAGING AND DIMENSIONS: 2100x1150x2000 mm (3000 Kg) Standard packaging Folding force 40 Tn Folding length 2000 mm Distance between uprights 1615 mm 200mm gooseneck 100 mm stroke Descent speed 100 mm / sec Working speed 8 mm / sec Speed return 70 mm / sec Board table distance 340 mm / sec 5 Hp motor
