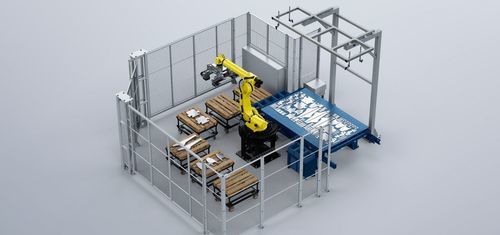

Intralogistic sorter SortMaster Vision

for logisticsindustrialoptical

Product overview
SortMaster Vision uses optical image recognition to capture each separated part and compares detected parts with the machine's cutting order using AI. Sorting and gripping strategies are generated autonomously, even when parts have shifted or overlapped after separation. This removes the need for manual programming. Parts are sorted onto pallets according to predefined criteria such as next process steps. SortMaster Vision is a scalable, modular solution designed to increase process reliability and enable flexible, unattended operation.

Key benefits

• AI part recognition: detects part presence and position to enable sorting without programming.
• Improved process reliability: prevents issues when removing parts from the scrap skeleton.
• Unattended production: automated filing and sorting to defined criteria, suitable for continuous or night operation.
• Process optimization: enables parallel operations, dense stacking and palletizing by subsequent process.
• Scalability: system capacity and performance can be scaled to production needs.

Additional information
Sorting follows defined criteria (for example to match subsequent process steps), improving throughput and supporting autonomous factory workflows.

Technical specifications

• Max. part size: 3,000 x 1500 mm
• Max. part weight: ≤ 100 kg
• Typical productivity increase: approx. 30%
• Technology: optical image recognition with AI for part identification and sorting
• Intended use: automatic sorting and palletizing of separated parts, suitable for small batches and flexible part ranges
