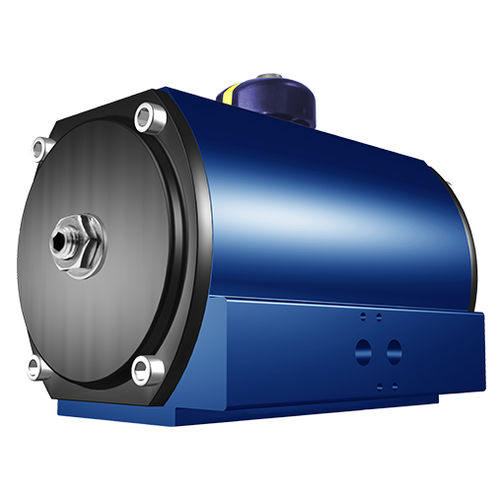

pneumatic valve actuator / quarter-turn / rack-and-pinion / double-acting
type 1

{{requestButtons}}

Characteristics

  • Type:

    pneumatic

  • Movement:

    quarter-turn

  • Technology:

    double-acting, rack-and-pinion, spring-return

  • Other characteristics:

    compact, butterfly, aluminum, modulating, ball, NAMUR, VDI/VDE 3845

  • Torque:

    Max.: 4,803 Nm (3,543 ft.lb)

    Min.: 7 Nm (5 ft.lb)

Description

Quarter turn (90°) & Type 1 Half turn (180°)

Compact rack and pinion actuator, Type 1, for quarterturn movement and modulating, Double Acting (DA) or Spring Return (SR). Body of Anodized Aluminum in blue colour as standard, other finishes available.

This actuator is generally recommended to ”small” Butterfly valves and all types of Ball valves.

The actuators comply fully with all the relevant industry standards for interfaces and connections such as ISO 5211, DIN 3337, VDI/VDE 3845 and NAMUR
