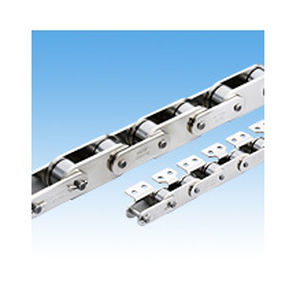

Stainless steel conveyor chain RF series

attachmentdoublesmall-size

This is an intermittent conveyor chain that uses special needles and has zero wear and elongation. This makes it possible to use it in transport systems that were previously thought impossible, contributing to automation, labor savings, and higher speeds for improved productivity. The NBSS (stainless steel) specification uses 18-8 stainless steel for all parts other than the needle, and the bearing section is sealed, allowing it to be used in environments where it is exposed to water droplets. Features - The wear elongation is an extremely small value of 0.06% after10 7 bending cycles. - All parts other than the needle are made of stainless steel, and the bearing part is sealed, so it can be used in an environment where it is exposed to water droplets. ・We have a wealth of experience in special shapes and can meet a variety of requests. ・Operating temperature range: -10℃ to 60℃ - RF Double pitch pitch R roller sprockets can be used. Precautions - It is sealed when exposed to water, but it is not completely waterproof and cannot be used underwater. Please note that the C and X dimensions and pin length of the A and K attachments are different from NB (Standard) Series Bearing Bush Chain. Attachment type ・Please refer to the following for attachment types. When selecting sprocket specifications It is necessary to select a sprocket specification that corresponds to the customer's operating environment and chain specifications. For NBSS (stainless steel) Bearing Bush Chain, please use standard stainless steel Double pitch sprockets with R roller specifications.
