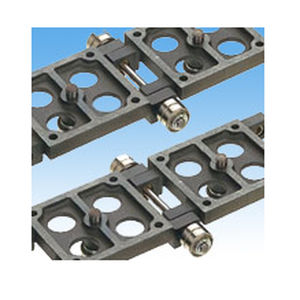

Steel conveyor chain BC series
blockdoublesmall-size

steel conveyor chain
steel conveyor chain
Add to favorites
Compare this product


Characteristics

Material
steel
Configuration
block, double
Other characteristics
small-size, roller, needle bearing
Width

45 mm, 60 mm, 70 mm, 90 mm
(2 in, 2 in, 3 in, 4 in)

Chain pitch

50 mm, 75 mm, 100 mm, 150 mm
(1.969 in, 2.953 in, 3.937 in, 5.906 in)

Tensile strength

50 kgf, 130 kgf

Description

Uses needle bearings in the bearing portion, and use steel bearing for outboard rollers and guide rollers. Will not elongate further after initial elongation (0.01%). A chain pitch accuracy of ±0.05mm allows for high precision positioning. The center roller in the middle (underside) of the link minimizes vibration, and the standard pin above the link center allows jigs to be attached. The base chain is steel with a black oxide coating. Features ・Virtually no chain wear elongation after initial elongation (0.01%) following start of operation. ・A chain pitch accuracy of ±0.05mm allows for high precision positioning. ・Operating Temperature Range :-10℃~60℃ Proper use of side rollers Outboard rollers come in single (S) or double (D) types. ・Double (D) type The guide rail extends right to the side of the sprocket, allowing for smooth conveyance. This type is for general applications. ・Single (S) type This is for replacement when this type is used in the past. When selecting sprocket specifications It is necessary to select a sprocket specification that corresponds to the customer's operating environment and the chain specification used. Please use dedicated sprockets for Indexing table chain.
