AC/DC power supply PL Series
single-outputdual-outputtriple-output

AC/DC power supply
AC/DC power supply
AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output, dual-output, triple-output
Other characteristics
digital, low-voltage, ultra-compact
Power

Max.: 242 W

Min.: 48 W

Output voltage

Max.: 60 V

Min.: 6 V

Current

Max.: 8 A

Min.: 1.5 A

Description

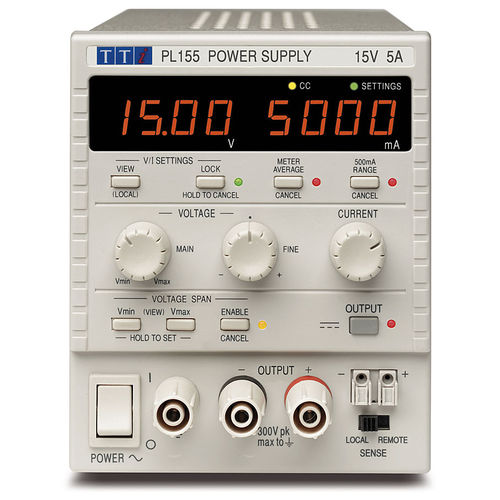

Bench System DC Power Supply, Linear Regulation, Smart Analog Controls Single, Dual or Triple Outputs, 48 to 242 watts, with/without Remote Interfaces Single, dual or triple output models Models from 6V/8A up to 60V/1.5A Linear regulation - for the best performance Ultra-compact design - uses up less space True Analog controls - for ease of use S-Lock function - instantly lock settings V-Span function - customize the voltage range Low current range and current meter averaging DC output switches and "view limits" button Selectable remote sense terminals Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models High current low voltage output on triple output model RS-232, USB and LAN (Ethernet), GPIB optional (P models) LAN Interface conforms with LXI standard (P models) Analog remote control of V and I (single output P models) Front and rear terminals (P models)
