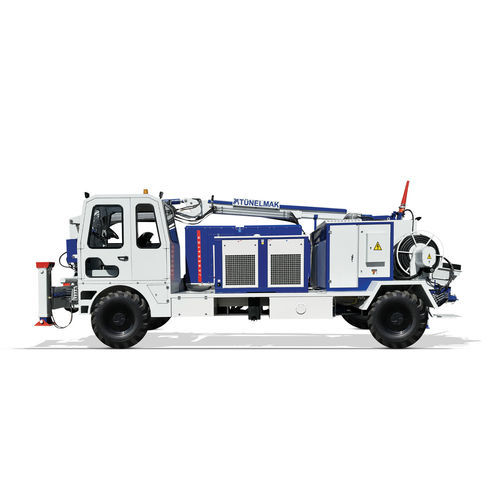

Mobile concrete pump Adroit 450G

all-terrainindoor/outdooroutdoor

Overview
Adroit 450G is a combined shotcrete and concrete pumping machine designed for open-area and confined-site applications. Built on a rigid chassis with 4-wheel drive and 4-wheel steering, the unit integrates lifting, tilting and telescopic boom functions, rotation group and a compact modular platform with water and admixture systems. The machine carries an onboard compressor and generator on its frame, enabling many outdoor shotcreting operations to be performed by a single operator and reducing the need for external equipment and additional personnel.

Highlights

• 4×4 shotcrete machine with integrated generator
• Standard pumping capacity 30 m³/h (concrete pumping capacity adjustable)
• Hydrostatic drive with variable flow pump and hydromotor for max speed–max torque operation
• Selectable gear options (fast or slow) to suit road and ground conditions

Key features

• 30 m³/h shotcrete pumping capacity
• 13.6 m lateral reach
• 15.8 m vertical reach
• 9.2 m³/min compressor capacity
• Perkins 74.5 kW diesel engine
• Compressor and generator installed on the machine frame (enables single-operator open-area applications)
• Lifting, tilting and telescopic boom system with rotation group
• Compact modular system with water and admixture pumps and tanks
• Energy cable reel mounted on platform

Technical specifications

• Pumping capacity (standard): 30 m³/h (adjustable for concrete pumping)
• Lateral reach: 13.6 m
• Vertical reach: 15.8 m
• Compressor capacity: 9.2 m³/min
• Engine: Perkins 74.5 kW diesel
• Drive / steering: 4 wheel drive and 4 wheel steering on a rigid chassis
• Boom: lifting, tilting, telescopic boom system with rotation group
• Onboard equipment: compressor and generator mounted on frame
• Additional systems: water and admixture pumps and tanks; energy cable reel
• Drive system: hydrostatic with variable flow pump and hydromotor; selectable gear options (fast/slow)
• Operational advantage: designed to reduce need for external compressors/generators and manpower for shotcreting in open areas
