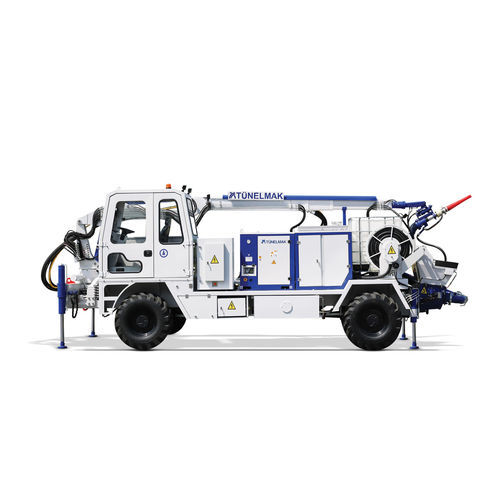

Mobile concrete pump Adroit 450H/W

outdoorfor constructionrough terrain

Product Type
Shotcrete machine

Key Features

• 30 m³/h shotcrete pumping capacity
• 13.1 m lateral reach
• 15.2 m vertical reach
• 9.2 m³/min compressor capacity
• Perkins 74.5 kW diesel engine
• Powershift or hydrostatic drive system

Overview
Adroit 450H/W series are designed as concrete pumping and shotcreting machines. The rigid chassis has 4 wheel drive and 4 wheel steering. Machines are fully equipped with lifting, tilting, telescopic boom system, rotation group, compact modular system, water & admixture pumps and tanks, energy cable reel, compressor on the platform. Standard pumping capacity is 30 m³/h, concrete pumping capacity is adjustable.

Drive Options
Hydrostatic and powershift drive systems are available for this machine. Hydrostatic system allows user to have maximum torque by variable flow pump and hydromotor. According to road and land conditions, gear options can be chosen as fast or slow. Ideal choice for work sites where high speed performance is required and construction areas which have difficult ground conditions. Powershift option provides more movement ability in long distance and rough fields.

Technical specifications

• Shotcrete pumping capacity: 30 m³/h (standard, adjustable)
• Lateral reach: 13.1 m
• Vertical reach: 15.2 m
• Compressor capacity: 9.2 m³/min
• Engine: Perkins 74.5 kW diesel
• Drive system: Powershift or Hydrostatic (variable flow pump and hydromotor)
• Chassis: Rigid chassis with 4 wheel drive and 4 wheel steering
• Equipment: Lifting, tilting, telescopic boom system, rotation group, water & admixture pumps and tanks, energy cable reel, compressor on platform
