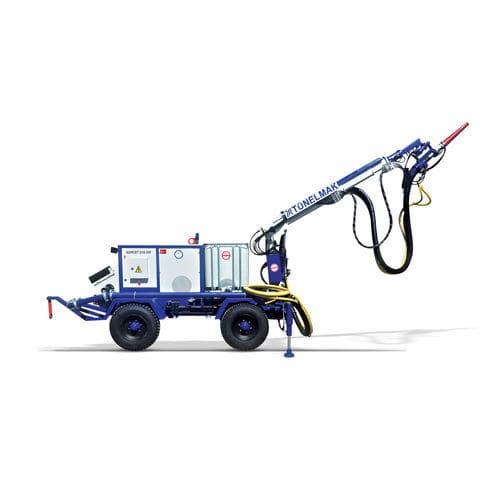

Stationary concrete pump Adroit 016ER / 016DR

indoor/outdoorfor tunneloutdoor

Overview
The Adroit 016 series are stationary shotcrete pumps with a chassis-mounted telescopic boom, engineered for low-dust application in confined and open areas. They combine a compact footprint with a 7.5 m standard reach and options to extend boom range for site adaptability.

Key features

• 16 m³/h shotcrete pumping capacity
• 7.5 m standard telescopic chassis-mounted spraying boom (optional extended range)
• Power unit: Perkins 36 kW diesel engine or 37 kW electric motor

Description
Designed for narrow-profile tunnels and surface works where truck access is limited, the Adroit 016ER / 016DR deliver near dust-free application and low rebound, reducing material waste and improving on-site safety. The chassis-mounted telescopic boom simplifies positioning in constrained spaces and can be specified with extended reach. Low operating and maintenance needs make these machines suitable for continuous site use and rental fleets.

Caractéristiques / spécifications techniques

• Model family: Adroit 016 series (016ER / 016DR)
• Type: Stationary shotcrete pump with chassis-mounted telescopic boom
• Pumping capacity: 16 m³/h
• Standard boom reach: 7.5 m (telescopic; optional extended range available)
• Power unit options: Perkins 36 kW diesel engine or 37 kW electric motor
• Application: Narrow-profile tunnels (not accessible by truck), mounting on pumps or 4×4 vehicles, and open surface applications
• Advantages: Dust-free application, low rebound, low operating and maintenance costs
