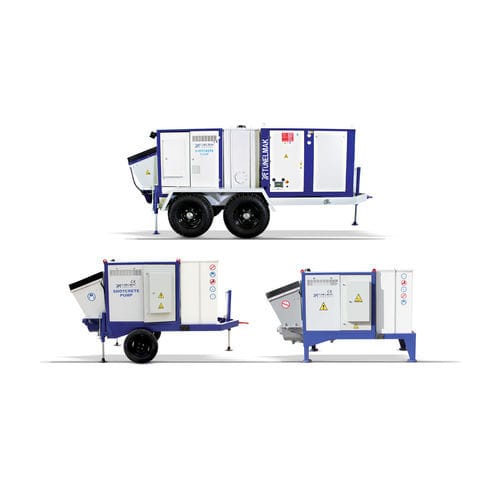

Stationary concrete pump Adroit 007 series
for tunnelfor very narrow aislesand shotcrete

Stationary concrete pump - Adroit 007 series - TUNELMAK CONSTRUCTION MACHINERY INC - for tunnel / for very narrow aisles / and shotcrete

Add to favorites

Compare this product

Go to the TUNELMAK CONSTRUCTION MACHINERY INC website for more information

Characteristics

Configuration

stationary

Applications

for tunnel, for very narrow aisles

Other characteristics

and shotcrete

Output

Min.: 7 m³/h
(247.2 ft³/h)

Max.: 8 m³/h
(282.5 ft³/h)

Pumping pressure

60 bar
(870.2 psi)

Power

37 kW
(50.3 hp)

Width

1,000 mm, 1,350 mm, 1,560 mm
(39 in, 53 in, 61 in)

Length

2,700 mm, 3,300 mm, 4,950 mm
(106 in, 130 in, 195 in)

Height

1,600 mm, 1,800 mm, 1,900 mm
(63 in, 71 in, 75 in)

Weight

1,480 kg, 1,540 kg, 3,200 kg
(3,263 lb, 3,395 lb, 7,055 lb)

Description

Product
Adroit 007 / 007C / 007S stationary shotcrete pumps

Description
Dry-mix sprayed concrete machines designed to minimize dust generation and material waste during application. The Adroit 007 series is built for stationary use with manual operation and specific measures to reduce airborne dust. Suited for confined or narrow-profile tunnels where truck-mounted equipment or 4×4 vehicles cannot access. Low rebound performance reduces rework and material loss. Designed for low operating and maintenance costs and simple on-site handling.

Key features

Designed for stationary shotcrete pumping
Suitable for manual operation
Minimizes dust generation during application
Ideal for narrow-profile tunnels inaccessible to truck-mounted equipment and 4×4 vehicles
Low rebound performance
Low operation and maintenance costs
Easy to operate and maintain
Shotcrete pumping capacity: 8 m³/h (alternate specification: 7 m³/h)
Compressor capacity: 6 m³/min
