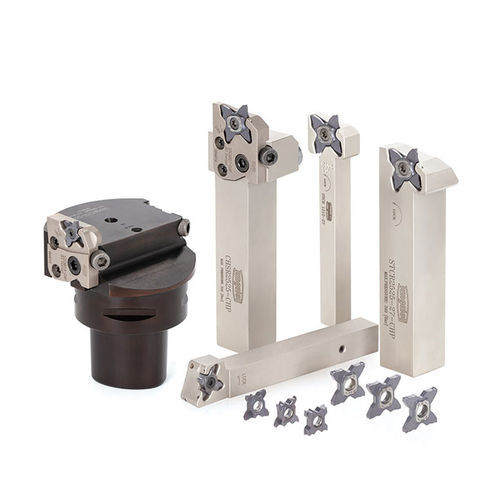

Grooving insert TETRACUT series

Ground insert clamps into unique insert pocket and provides high rigidity as well as repeatability Features 1. Unique 3-point clamping system The unique pocket design provides accurate indexing repeatability of the cutting edge height. 2. Ground or molded chip breakers Enhanced lineup for greater flexibility. 3. Expedited delivery service for special grooving inserts TetraMini-Cut Grooving and Parting-off Inserts (Grooving width 0.33 – 3.0 mm) For precise grooving operation with uniquely designed insert, mainly in swiss and small lathes TetraForce-Cut Grooving and Parting-off Inserts (Grooving width 0.5 – 4.0 mm) Suitable for accurate grooving with ground 4-edged inserts for wide range of components TetraMini-Cut Threading Inserts (Pitch 0.4 – 3.0 mm) Threading insert with 4 cutting-edges
