Screw pump TPSP-01pneumatichand-primingvacuum-assisted priming
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Operation
- pneumatic
- Priming
- hand-priming, vacuum-assisted priming
- Mobility
- stationary
- Domain
- industrial, for laboratory
- Applications
- high-pressure, adjustment
- Protection level
- standard
- Other characteristics
- compact, combined
- Input diameter
76 mm, 142 mm
(2.992 in, 5.591 in)- Weight
815 g
(28.75 oz)
Description

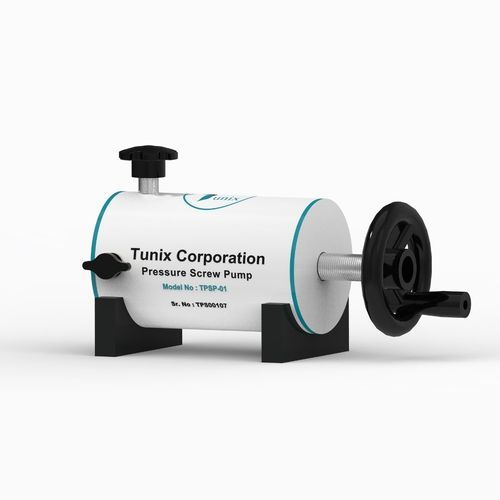

Pressure Screw Pump (TPSP-01)
• Very high pressure stability.
• Very Low drop rate,
• Compact ,light weight, hand operated.
• Compact ,light weight, hand operated
• Combined Pressure/ Vaccume mode
• Range of Pressure upto 2500 mmwc &
• vaccum upto -1500 mmwc
• Fine adjustment ± 0.1 mmwc
• Pressure type : Pneumatic
• Fine tuning option available
• Thermally Insulated
• Pressure release valve available
• Leak rate of Instrument per minutes :
• At Low range (0 to 500 mmwc) :- 0.25 mmwc
• At mid range (500 to 1500 mmwc) :- 1 mmwc
• At high range (1500 to 2500 mmwc):- 2.5 mmwc
• Pump Dimension :-
• I. Diameter 76 mm
• II.Depth 142.00 mm
• Weight : 815 g.
• Standard Accessories :
• I. Tubes with T connector 1 mtr long each
• II. Soft carry bag
