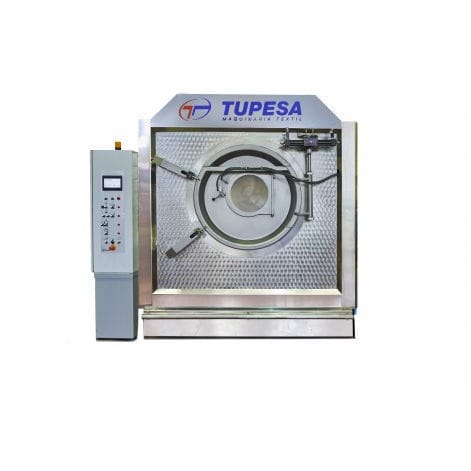

Automatic washing unit Speed series

industrialfor the textile industry

Tupesa has developed a new and complete range of SPEED open-pocket single-shaft drum centrifuges for ready-made garments that allow both the washing and spinning functionality. Its advanced design and technology, as well as a wide variety of options and accessories, allow a significant impact on energy efficiency and saving water and chemicals, reducing production costs and thus increasing business performance. To give solution to the demand of big loads with a range that includes the models 220, 330 and 400 Kg. / 485, 730 and 880 Lb. Washers of high centrifugation without need of anchors, "floating system". - Made of stainless steel AISI-304. - Galvanized steel chassis. - Programmer for automatic processes. - Automatic balancing of the machine. - The drum is located horizontally and door for front loading and unloading. - Variable speed of rotation with automatic reversal of the direction of rotation. - Direct steam heating and complete pneumatic valves. - Tilt forward and back to facilitate loading and unloading. Accessories: - Additional water inlet. - Acquasoft system: Heat exchanger, circulation pump, filter and modulant valves for bath heating and cooling, 4 tanks of 45 l / 12 gal in stainless steel. - Set of 1 tank in stainless steel of 45 lt / 12 gal with introduction pump and complete pneumatic valves. - Set of 2 tanks in stainless steel of 45 lt / 12 gal with introduction pump and complete pneumatic valves. - Set of 3 tanks in stainless steel of 45 lt / 12 gal with introduction pump and complete pneumatic valves. - Set of 4 tanks in stainless steel of 45 lt / 12 gal with introduction pump and complete pneumatic valves. - Temperature, time and liters control kit in manual mode. - Steam chamber for indirect heating. Characteristics / Technical Specifications: Capacity (kg): 150, 220, 365, 460 Drum Diameter (mm): 1,500, 1,500, 1,800, 1,800 Drum Depth (mm): 920, 1,220, 1,424, 1,800 Drum Plate Thickness (mm): 3 Drum Volume (lit): 1,620, 2,150, 3,650, 4,850 Water Inlet (in): 2" Steam Inlet (in): 3/4", 1 1/4" Air Inlet (in): 1/4" Drain (mm): 150 Wash Velocity (rpm): 4-50 Centrifuge Speed (rpm): 4-550 Motor Power (Kw): 27.6, 50 Motor Power (Hp): 37, 70 Weight (kg): 7,000, 7,500, 10,600, 12,700 G Factor (G): 253, 270, 321 Dimensions: Height (A) (mm): 2,460 Depth (B) (mm): 2,400, 4,220 Tilting Depth (D) (mm): 3,000, 4,665 Tilting Height (E) (mm): 3,100 Width (F) (mm): 2,200
