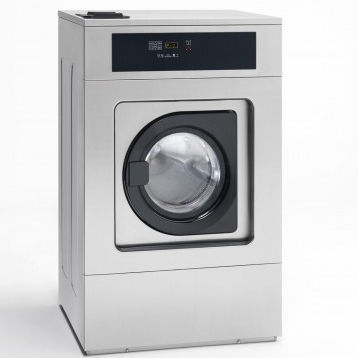

Automatic washing unit LV series

for the textile industry

LV washers are designed for professionals who require high-performance machines at affordable prices, or for those who need a rigid machine such as for self-service or boats. The medium speed washing machines (G factor = 200) stand out for their high level of water extraction, very low sound level, and absence of vibrations. These machines are highly resistant and help minimize energy expenditure through efficient programming and imbalance control via a frequency inverter. Built with a sturdy structural tube chassis, they ensure maximum reliability and durability for the machine and all its components. The range includes washing machines with capacities from 10 to 27 kg / 22 to 60 lb. Accessories: - Electronic timer: Provided with six fixed programs. Cooling cycles and centrifuge can be selected during each cycle, allowing to jump to any program step. - Microprocessor: Features 30 programs (15 cycles for each program), available in 5 languages. Functions include water level, temperature, rotation speed, drainages, and cycle duration. Can be connected to a PC with Windows OS. Automatic chemical product metering by 4 detergent tanks (ISO normative). Optional: program for water level control in liters and up to 10 chemical pumps. - Timer of currencies: Equipped with 6 electronic programs with three keys (program selection, start, and door opening), designed for laundries. Accepts currencies from several countries and can connect to analog or digital centralized payment units. Allows fixing different prices per selected program. Technical Specifications: - Capacity: 10/ 24.2, 14 / 30.8, 18 / 39.6, 27 / 59.5 kg/lb - Drum Volume: 105 /27.7, 140 /37, 190 / 50, 215 / 56.9 lt/gal - Drum Diameter: 532 / 20.9", 620 / 24.4", 700 / 27.5" mm/in. - Drum Depth: 425 / 16.7", 430 / 16.9", 600 / 23.62", 680 / 26.7" mm/in - Wash Velocity: 50 rpm - Centrifuge Speed: 820, 760, 715 rpm - G Factor: 200 - Weight: 208 /458.5, 250 / 551, 340 / 750, 450 / 992 kg/lb - Cold Water Electrovalve: 3/4" - Hot Water Electrovalve: 3/4" - Drain: 50 / 2", 76 / 3" mm/in - Steam Inlet: 1/2" - Heating Force: 9, 12, 15 Kw - Steam Consumption: 7.4 / 16.3, 21 / 46.3, 27 / 59.5, 35 / 77 kg/lb/h - Steam Pressure: 6 / 12.5, 6 / 72.5 bar/psi - Motor Power: 0.75, 1.35, 2.2, 3 Kw - Motor Power: 1, 2, 3, 4 Hp - Low Level Water Consumption: 42 / 11.1, 55 / 14.5, 70 / 18.5, 83 / 21.93 Lt/gal - High Level Water Consumption: 62 / 16.4, 80 / 21.13, 90 / 23.8, 120 / 31.7 Lt/gal Dimensions: - Width (A): 27.24, 31, 34.8, 38.5 in. - Height (B): 45.3, 51.2, 55.3, 57 in. - Depth (C): 32.7, 34.25, 36, 38.6 in. Product Code: LV Availability: In Stock
