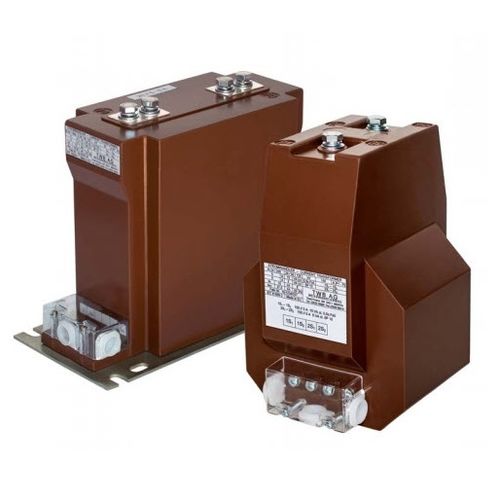

Current transformer Al 24
instrumentcast resinprotection

current transformer
current transformer
current transformer
Add to favorites
Compare this product


Characteristics

Type
current, instrument
Configuration
cast resin
Applications
protection, for indoor service
Electrical characteristics
medium-voltage
Other characteristics
primary, secondary
Current

Min.: 5 A

Max.: 2,500 A

Description

We produce supporting type current transformers for indoor installation. They contain up to five cores for revenue metering and protection purposes, constructed from high quality siliceousor nickel steel laminations. All active parts are altogether impregnated with cycloaliphatic outdoor resin. In case 1:2 reconnection is requested, thiscan be achieved either by mounting reconnection bars to the primary terminals, or by an intermediate terminal at the secondary coil. Each terminal of the secondary coil can be grounded individually directly to the metal base through a bolt. These types aremaintenance free,and with respect to their main dimensions many types correspond to the German standards DIN 42600. High est vo Itage for equipmet (kV):24 Rated insulation level (kV):24/50/ 125 Rated primary current (A):5 up to 2500 Primary recormection (A):2x5 up to 2x 1000 Secondary tap - upon request Rated secondary current (A):5or 1 Accuracy class of measuring core:0.1 :02S: 0.2: 0.5S: 0.5:1 :3 Instrument security factor - 5or 10 Rated burden of measuring core (VA):1.25 up to 30 Accuracy class of protection core - 5P : 10P Accuracy limit factor:5or 10or 15or20 Rated burden of protection core (VA):1.25 up to 30 Number of cores:up to 3 Rated frequency (Hz) - 162/3:50:60 Rated thermal short-time current (kA) - lth= 100 x In (max 120)/1 s Rated dynamic current (kA)::ldyn = 2.5 x Ith Class of insulation:E Weight (kg):25 Cantilever strength (N):>5000 Maximum altitude of installation (m):up to 1000 Ambient temperature: (°Q - - 5 up to + 50 Specifications:IEC 61869-1 4 2 : DIN ¿2600: ANSI :BS etc Capacitive voltage divider:available upon request Drawing Nr:ZN 2121/12-ZN2127/12

Catalogs

No catalogs are available for this product.

See all of TWB SA‘s catalogs
