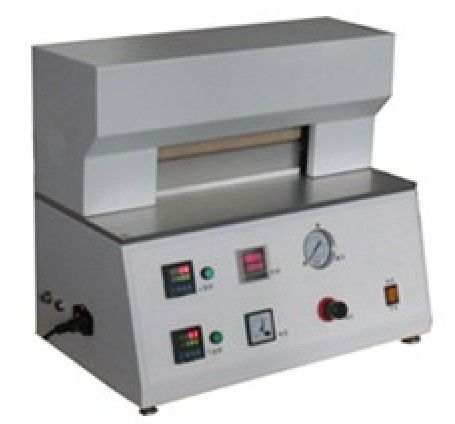

Heat seal tester HST-B
temperaturepressure

heat seal tester
heat seal tester
Add to favorites
Compare this product

Characteristics

Test type
temperature, pressure
Tested product
heat seal

Description

Technical Features: 1. Control system digital display, fully automated equipment; 2. Digital P.I.D. temperature control, high precision temperature control; 3. Selected heat sealing cutter materials and customized heating tube, uniform heat sealing surface temperature; 4. Double cylinder structure, internal pressure balancing mechanism; 5. Pneumatic control components are of high precision, completely in famous brands; 6. Anti-hot design and electric leakage protection design, safe operation; 7. Well-designed heating element, heat dissipation evenly, long service life; 8. Automatic and manual modes operating mode, realizing efficient operation; 9 .Control panel in ergonomically optimized design, easy operation; Technical Specifications: Description HST-B Sealing Temperature RT ~ 300 ℃ (Accuracy ± 1 ℃) Sealing Pressure 0 ~ 0.7Mpa Sealing Time 0.01 ~ 9999.99s Heat Seal Surface 300mm × 10mm Heating Mode Single heating or double heating Air Pressure ≤0.7MPa Test Conditions Standard test environment Host Size 550mm × 330mm × 460mm (L × B × H) Power AC 220V ± 10% 50Hz Net Weight 25 kg
