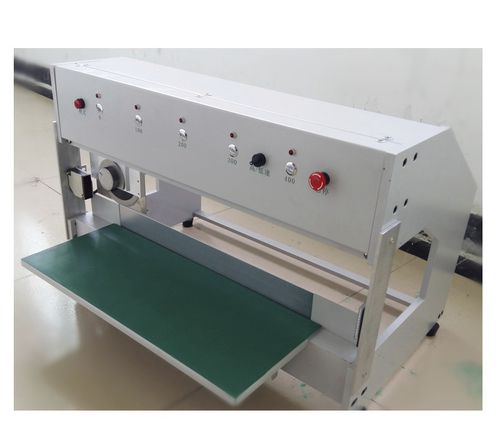

PCB cutting machine SUNY-ZFB400
bladetrimming

PCB cutting machine
PCB cutting machine
Add to favorites
Compare this product


Characteristics

Product handled
for PCB, blade
Associated function
trimming

Description

Specification: 1.Power:AC220V 50-60HZ 2.The Blade Velocity can be adjusted. 3.The Blade Route:400mm 4.Blade Trimming:0-2mm. 5.The down blade can be adjusted:0-50mm. 6.Back Shield Board Depth Trimming:0-150mm. 7.The maximum width can be cutted of the PC boards:150mm 8.The maximum length can be cutted of the PC boards:400mm 9.PC Boards maximum thickness:1.0-3.2mm 10.The maximum thicknessof the V-cavity:0.25-2.0mm 11.The PC boards after welding will be easy to damage during cutting, This machine can improve the working efficiency and quality.Avoid the damage. 12.Cutting by the samtech type,can reduce the stress, to prevent the solder joint crack and Parts fracture. 13.With the up round blade and down flat blade, put the PC boards under the down flat blade and then turn on the power, the up-round blade will move to the set point and then cutting the PC boards. The incision is flat and level. 14.The Blade Route can be adjusted by the PC length, the stop point is:0-100-200-300-450-600mm. 15.With the cutting length flapper in the back of the blade. It is can adjusted by the different width of the PC boards. It is can used for the PC boards which is without the V-cut cavity. 16.Can adjust the thickness of the PC boards. 17.The up and down blade are made of the high speed steel material, the working life is very long. One set of the blade can used about 360 days.(working 8 hours per day).The blade can be sharpened for 7-10 times.
