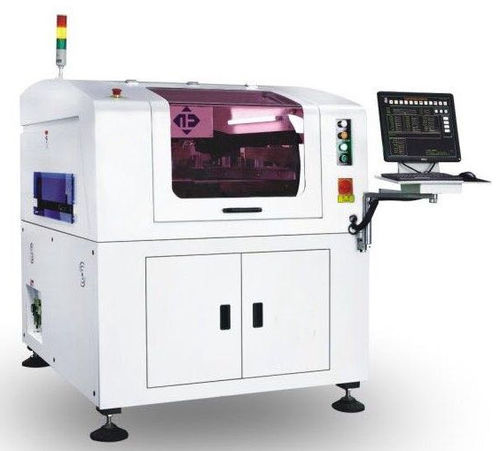

Stencil printer

Item Screen Frames Min Size 470X370mm Max Size 737X737mm Thickness:25~40mm PCB Min Size 50X50mm PCB Max Size 510X510mm PCB Thickness 0.4~6mm PCB Warpage <1% Transport Height 900±40mm Transport Direction Left-Right;Right-Left;Left-Left;Right-Right Transport Speed Max 1500mm/S Programmable Board Location Support System Magnetic Pin/Up-down table adjusted/supportblock:by hand Clamping System:side clamping,vacuum nozzle, Print head:Two independent motorised printheads Squeegee Speed;6~200mm/sec Squeegee Pressure;0~15Kg Squeegee Angle:60°/55°/45° Squeegee Type:Stainless steel(Standard), plastic Stencil Separation Speed:0.1~20mm/sec Programmable Cleaning System:Dry,Wet,Vacuum (Programmable) Table Adjustment ranges:X:±10mm;Y:±10mm;θ:±2° Repeat Position Accuracy:±0.01mm Printing Accuracy:±0.025mm Cycle Time:<7s (Exclude Printing & Cleaning) Product Changeover:<5Min Air Required:4.5~6Kg/cm2 Power Input:tAC:220±10%,50/60HZ 1Φ 3KW Control Method:PC Control Machine Dimensions:1220(L)*1355(W)*1500(H)mm Machine Weight :Approx:1000Kg
