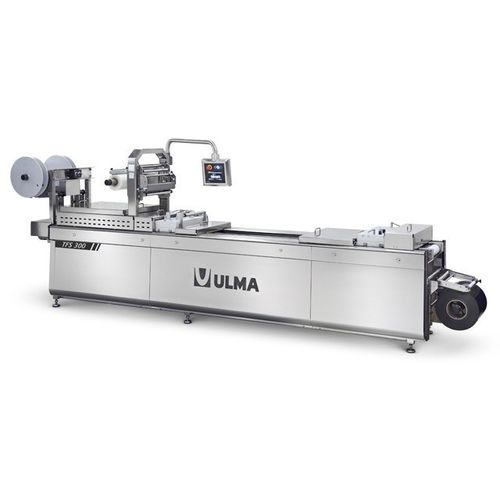

Roll-fed thermoforming machine TFS 300

plastic filmfor medical packagingmodified atmosphere packaging

Overview
Hygienic thermoforming machine for flexible or rigid film, designed for food, medical and non-food packaging. Supports modified atmosphere packaging (MAP) and vacuum options. An economical automatic thermoformer offering key features of larger thermoforming lines.

DESCRIPTION
The TFS 300 forms packages directly from two rolls of film (flexible or rigid). Vacuum with gas flushing (MAP) is available as an option. The modular design allows quick format changes to suit mixed-production requirements and short runs, and it can be expanded by frame extension.

KEY BENEFITS

• Lower unit packaging cost.
• Increased productivity.
• Improved product presentation.
• Faster and safer product loading.

TECHNICAL SPECIFICATIONS

• Stainless steel hygienic construction, IP-65.
• 7-inch touch screen UPC control system with operational diagnostics and parameter/error display.
• Modular basic frame 3000 mm (optional +1 m extension).
• Tool-less detachable in-feed and quick format change.
• Programmable configurations and advance speed.
• CE approved.

Ease of use and maintenance

• High efficiency and minimum maintenance.
• Tool-less format change for fast line changeover.
• Remote Support Management (RSM) via Ethernet/HTTP.

OPTIONAL DEVICES

• Upper and lower printed film centering.
• Expanded loading area.
• Vacuum and gas flush systems; integratable vacuum pump 25, 63 or 100 m3/h.
• Adaptations for clean rooms and highly corrosive environments.
• Integration with peripheral equipment (coders, dosing systems).
• Re-closeable zippers, easy-open features, zig-zag cutting for easy opening.

APPLICATIONS

• Suitable for food, medical and non-food products; ideal for medium production runs and as a support machine for short runs or product testing.
