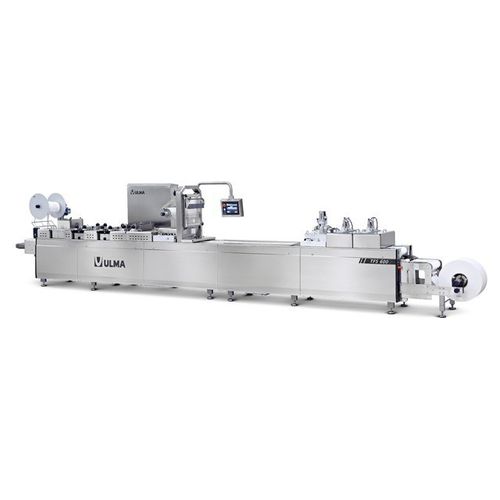

Plastic sheet thermoforming machine TFS 600

plastic filmsheetfor food packaging

Description
The TFS 600 is a hygienic-design thermoformer in the new ULMA 600-700 series, developed to meet strict hygiene and deep-cleaning requirements for food packaging. The machine accepts flexible and rigid films and offers options for Modified Atmosphere Packaging (MAP) and vacuum packing. Its modular construction enables adaptation to different pack formats and production rates.

Functional features

• Easy format change for fast production transitions.
• UPC control system:
  - 10 inch colour touch HMI.
  - Intuitive user interface.
  - Multi-language and multi-character support (Cyrillic, Arabic, Katakana, etc.).
  - Control and display programs updatable via USB or Ethernet.
  - Backup to USB pendrive.
  - Access protection with 3 permission levels.
  - Ethernet interface and remote view/control identical to the machine HMI.
  - Display of current production rate; cycle optimization tools based on time monitoring of each station.

Technical features
Construction features

• Modular machine architecture for scalability and format adaptability.
• Stainless steel frame suitable for hygienic environments.
• Safety compliant with EC regulations.
• Expandable layout depending on project requirements.
• Easy access to internal components via removable lateral covers to simplify cleaning.
• Optional additional dies available for multi-format operation.

Ease of maintenance

• Designed for minimum routine maintenance.
• Integrated maintenance program accessible from the control panel.
• Remote Support Management (RSM) via Ethernet with HTTP access for diagnostics.
• Use of standard commercial top-level components for simplified replacement.

Other optionals
Machine can be equipped with a wide range of devices to meet product feeding, dosing, handling and quality control requirements.
Most common options:

• Dosing and product loading systems.
• Die/reel holder trolley.
• Pack convergers and aligners.
• Coding and printing systems.
• UST seal test checker (ULMA seal tester).
• Metal detectors.
• Integration modules for end-of-line automation.

Technical specifications

• Model: TFS 600 (600-700 series).
• Film types: flexible or rigid.
• Packaging options: MAP and vacuum available.
• Control: UPC system with 10 inch colour HMI, multi-language support, USB/Ethernet updates, 3 access levels.
• Construction: modular, stainless steel frame, removable lateral covers for cleaning.
• Safety: EC regulation compliance.
• Maintenance: integrated maintenance program; remote support via RSM over Ethernet/HTTP.
• Options: additional dies, dosing/loading systems, coding/printing, metal detection and end-of-line integration.
