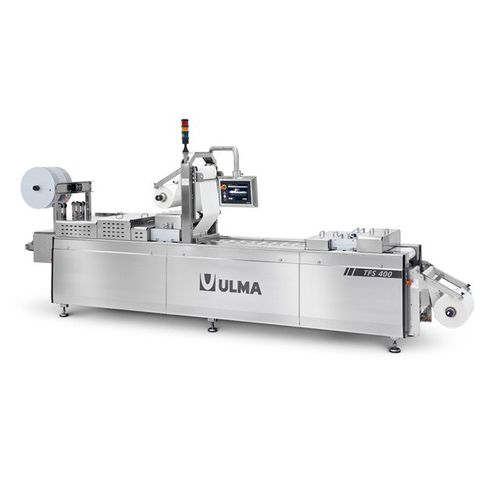

Roll-fed thermoforming machine TFS 400

plastic filmmodified atmosphere packagingfor MAP packaging

DESCRIPTION
The ULMA TFS 400 hygienic thermoforming machine is designed for packaging with flexible or rigid film, supporting Modified Atmosphere Packaging (MAP) and vacuum. It delivers medium-high performance with quick format changes, suitable for mixed production and short runs.

FUNCTIONAL FEATURES

• Easy and fast format change to adapt to mixed production needs.
• UPC control system:
  • 7" colour touchscreen display.
  • User-friendly interface with multi-language and character support (Cyrillic, Arabic, Katakana, ...).
  • Control and display programs updatable via USB or Ethernet; USB backups.
  • Access protection with 3 permission levels and Ethernet connectivity.
  • Remote view and control identical to on-machine HMI; real-time rate display and cycle optimization tools.

TECHNICAL FEATURES
Construction features

• Modular construction allowing machine enlargement per project.
• Stainless-steel frame for hygienic environments.
• Safety standard compliant with EC regulations.
• Easy access to internal components through removable lateral covers.
• Optional additional dies available for multi-format production.

MAINTENANCE

• Low maintenance design with integrated maintenance program in the control panel.
• Remote Support Management (RSM) via Ethernet/HTTP for diagnostics and support.
• Use of original top-level commercial components to simplify servicing.

COMMON OPTIONS
The TFS 400 can be equipped with a wide range of devices to adapt to product and line requirements:

• Dosing and product loading systems.
• Die/reel holder trolley.
• Pack convergers and alignment systems.
• Coding and printing systems.
• UST seal test checker (ULMA seal tester).
• Metal detectors.
• End-of-line integration modules.

TECHNICAL SPECIFICATIONS

• Hygienic thermoforming machine for flexible or rigid film.
• Packaging modes: Modified Atmosphere Packaging (MAP) and vacuum.
• Medium-high performance level; suitable for mixed production and short runs.
• Processes flexible and rigid packaging up to 700µ.
• Part of the ULMA TFS Thermoforming line, redesigned for hygiene and deep cleaning.
• UPC control system with 7" colour touchscreen, multi-language support, USB/Ethernet updates, 3 permission levels, remote view/control and cycle optimization tools.
• Modular construction with stainless-steel frame; machine expandable per project.
• Removable lateral covers for easy access to internal components.
• Minimum maintenance with integrated maintenance program and RSM support.
