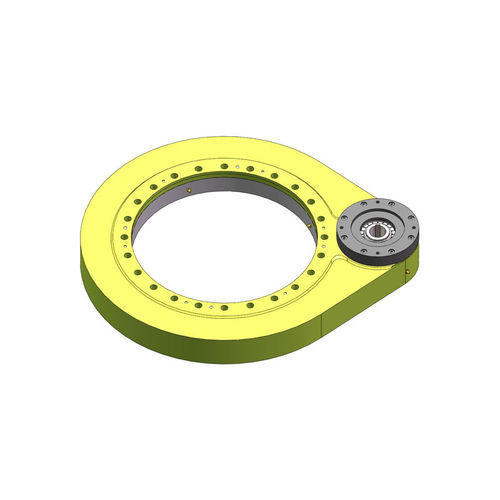

Slewing drive S-III-O-0655

Slewing drive - S-III-O-0655 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-III-O-0655 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-III-O-0655 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 25,549 Nm
(18,843.975352 ft.lb)

Max.: 38,420 Nm
(28,337.137775 ft.lb)

Gear ratio

6.6 unit

Description

Module - M - mm - 8 Teeth number of wheel - Z2 - － - 99 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 785 Axial static load - Co ax - KN - 2102 Axial dynamic load - Cax - KN - 338 Weight - W - Kg - 271.9

Catalogs

Other Unique Transmission Equipment(Luoyang)Co., LTD products

S-III Heavy load series
