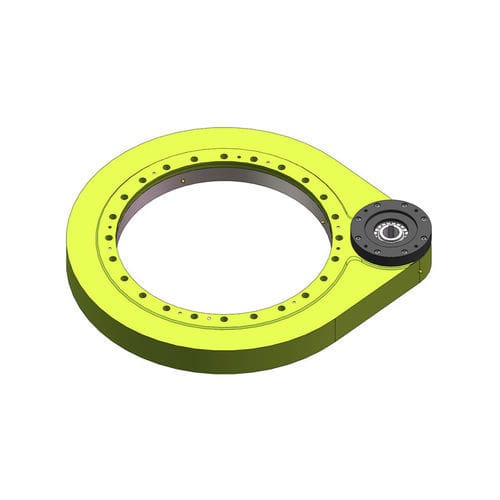

Slewing drive S-III-O-0755

Slewing drive - S-III-O-0755 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-III-O-0755 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-III-O-0755 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 28,768 Nm
(21,218.18791 ft.lb)

Max.: 43,125 Nm
(31,807.367688 ft.lb)

Gear ratio

7.4 unit

Description

Module - M - mm - 8 Teeth number of wheel - Z2 - － - 111 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 906 Axial static load - Co ax - KN - 2424 Radial dynamic load - Crad - KN - 305 Axial dynamic load - Cax - KN - 356 Weight - W - Kg - 301
