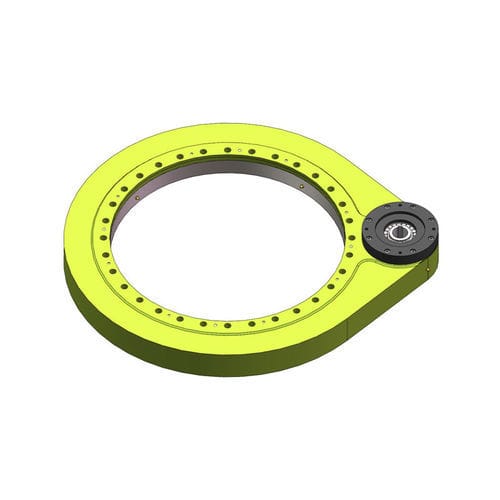

Slewing drive S-III-O-0855

Slewing drive - S-III-O-0855 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-III-O-0855 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-III-O-0855 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 33,404 Nm
(24,637.526034 ft.lb)

Max.: 48,124 Nm
(35,494.440872 ft.lb)

Gear ratio

8.2 unit

Description

Module - M - mm - 8 Teeth number of wheel - Z2 - － - 123 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 1025 Axial static load - Co ax - KN - 2745 Radial dynamic load - Crad - KN - 321 Axial dynamic load - Cax - KN - 375 Weight - W - Kg - 326.7

Catalogs

Other Unique Transmission Equipment(Luoyang)Co., LTD products

S-III Heavy load series
