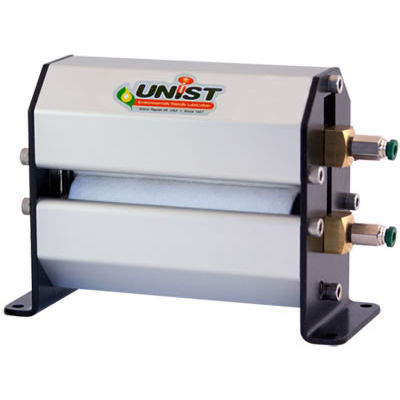

Oil lubrication unit Mini-Roller™

rollercontinuousfor metal stamping

Mini-Roller™ delivers continuous lubrication for thin and narrow coil stock. It is perfect for high-speed presses, small press windows and applications like punching, stamping, four-slide, and roll forming. Intelligent stock coating solution The Mini-Roller™ applies the correct amount of fluid for your small press window and high-speed, short feed length applications when combined with a SPR-2000™ or SPR-2000-JR™. This 1 to 6 in. wide (25 mm to 152.4 mm) unit consistently applies the correct amount of fluid and lets you start saving now. Uni-Roller® precision for narrow coil Internally-supplied rollers Consistent fluid application Neat application - No fluid mess! Horizontal or vertical Reduces fluid usage - Saves money! Mini-Roller™ reduces fluid usage and saves money On average, a Unist system can reduce stamping fluid consumption by 50% with some customers reporting reductions as high as 90%! 2 configurations Horizontal model uses a fluid controller to inject lubricant into a dispenser tube inside the roller. Small holes in the tube evenly distribute the lubricant along the length of the roller. Vertical model uses a baffle positioned inside each of the rollers near the top. Every time the fluid controller injects lubricant into the dispenser tube, the fluid spreads across the baffle and is redirected to the outside of the roller. Gravity pulls fluid down the length of the cover. Mini-Roller™ applications: Small press windows High-speed, short-feed lengths Thin stock Punching Stamping Roll forming Four slide Many other metal forming applications
