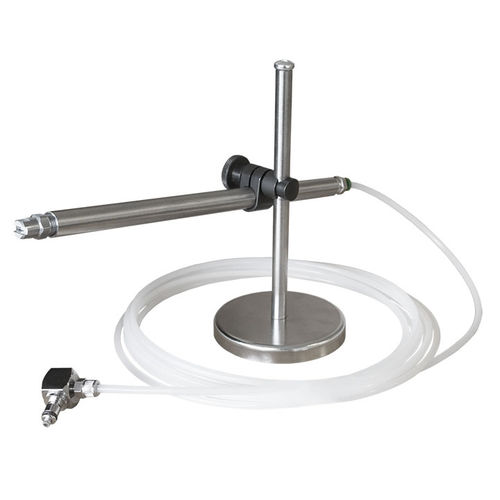

Spray nozzle

for liquidscontrol

The Uni-Roller® S2 excels at applying a continuous even coating of fluid to coil stock or a blank. However, there are times when additional fluid is needed at specific areas in the die. Unist Airless Spray Nozzles provide this extra boost. When connected to the SPR-2000™ programmable fluid controller, they integrate seamlessly into the jobs lubrication profile. Non-contact & supplemental applications The Unist Uni-Roller® S2 excels at applying a continuous even coating of fluid to coil stock or a blank. However, there are times when additional fluid is needed at specific areas in the die. Unist Airless Spray Nozzles provide this extra boost. When connected to the SPR-2000™programmable fluid controller, they integrate seamlessly into the jobs lubrication profile. Versatile nozzle for in-die lubrication User-friendly design Requires no air to operate Because these nozzles rely on the velocity of the fluid to create the spray pattern, their proper operation requires a fluid which is close to the viscosity of water. As a result, they work extremely well with water based solutions and emulsions, but are generally not recommended for use with oils or viscous synthetic fluids. All Unist Airless Spray Nozzles have a fan spray pattern. The spray diameter and flow rate of the fluid are controlled by specifying the spray angle and the nozzle orifice size. The available spray angles and corresponding coverage are shown below: System example The Airless Spray Nozzles connect directly to the outputs on the SPR-2000™. Up to 22 nozzles can be independently controlled or used in combination with a Uni-Roller® S2 applicator, giving maximum flexibility in coverage and control
