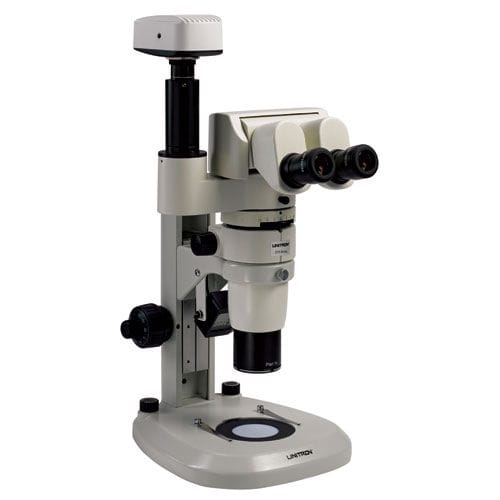

Optical stereo microscope Z10 series

inspectionindustrialmedical

The UNITRON Z10 Series is a modular system designed to deliver exceptional ergonomic and optical performance. The Z10 Series is an ideal choice for medical device manufacturer’s, industrial inspection and assembly, quality control, OEM integration and research applications. Users can select either an ergo tilting binocular head with an adjustable viewing angle of 0° – 35° for true fatigue-free viewing, or a binocular head with a 20° angle and extended eyetubes for maximum viewing comfort. All systems can easily add a photo port/beam splitter for attaching a camera to enable image capture or output to a video monitor. The Z10 Series offers a high depth of focus and resolution up to 289 lpm. Systems can be configured with a 10:1 (Z10), 8:1 (Z8) or a 6.3:1 (Z6) zoom ratio providing flexibility and value. Specifications • Ergonomic binocular viewing head, 0-35° tilting • Widefield 10x/24mm focusing eyepieces • 0.8x to 8.0x zoom magnification range • 10:1 Zoom Ratio • Magnification Range 8x to 80x (with 10x eyepieces) • Variable Zoom Magnification System with Parallel optical axis (Galilean optical system; Common Main Objective) • Interpupillary Distance Adjustment 51mm – 75mm • Click-stops at 1, 2, 3, 4, 5, 6, 7 and 8x positions • 1x Plan Achromat objective (N.A. 0.09); 0.3x, 0.5x, 2.0x optional • 78mm working distance • Airtight and anti-mold design • NOTE: All photos shown with optional stands, illumination and accessories • Shipping size 17x13x11 inches • Shipping weight 8lbs.
