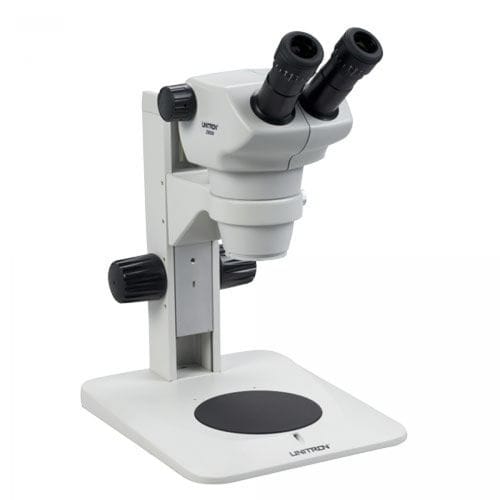

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.
The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.
The Z850 Series is available with either a binocular or trinocular viewing head.
Specifications
• Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
• Fixed glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.8x – 5.0x zoom magnification range
• 6.3:1 Zoom ratio
• Magnification range 8x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 52mm – 75mm
• Field of view 27.5mm - 4.4mm
• 115mm working distance
• Plain Focusing Stand with tension adjustment, 4” (100mm) of continuously smooth focus travel
• 125mm black and white stage plate
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z850 series microscopes
• Shipping weight 14lbs. with Binocular head, 15lbs. with Trinocular head
