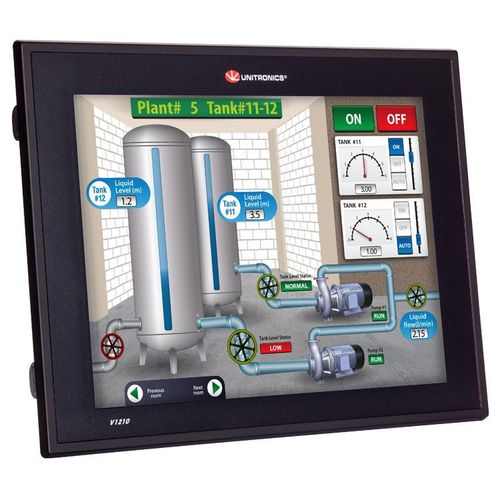

Panel-mount PLC 12.1", 800 x 600 pixels | Vision1210™ series

analog inputswith integrated I/Ofor fieldbus

This controller is a perfect fit for the food industry- with its IP66 rating, this unit is ideal wherever spray/wipe down applications apply. A wide variety of on board I/O options can be added by simply snapping a module onto the back of the PLC. With additional expansion modules allowing up to 1024 I/O, these configurations include digital and analog inputs and outputs, high-speed I/O, PT100/Thermocouple capabilities, and weight measurement. They can be mounted locally or remotely, up to 1000m from the controller. This power-PLC is equipped with a built-in USB programming port, recipe capabilities, Micro SD card memory storage for data logging and back up, complete PLC cloning and more. Systems integrators can now rely on a single device: the Vision1210!" can support 24 auto-tuned PID loops to control temperature, level, and pressure, while the 16-bit, 12.1 ,800X600 pixel SVGA color touch screen displays data, color trend graphs, and attention-grabbing alarm screens. Display options are almost endless, with more than 1000 user-designed screens, and up to 500 images per application. Internal memory holds 2MB of application logic, plus 1MB for fonts and 32MB for images.
