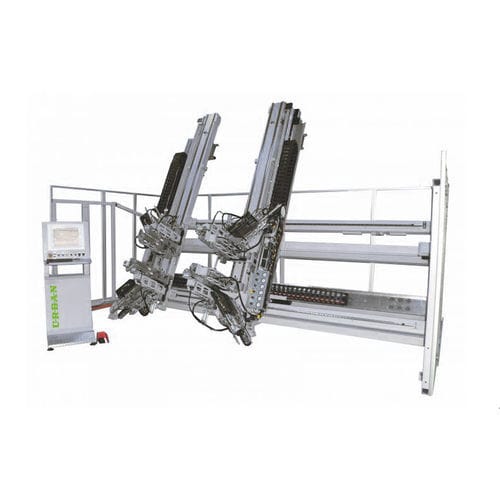

Configured with four right angled welding heads in a vertical configuration, welding heads are positioned with a precision motion control system.
Industrial control system for machine operation and a 5.7″ Power Panel Interface for HMI
Dust-proof touch screen interface is easy to maneuver with status message
Data can be accessed through a USB connection on the front of the panel, memory for daily or weekly production
Job entries can be read via bar-code, 2x USB, 1x RS232/RS422/RS485, and 1x Ethernet (10/100) for online operation
Weld seam limitation is 2.0 mm (079“)
Digital controlled temperatures (UTR320)
Back stops, vertical profile insertion
Manual load and manual unload ONLY
Machine is not capable of tilting or automatic unloading
Quick change weld fixture system (custom weld fixtures NOT included)
Parallel welding along with inline centering plate and heater plate for sash welding
Bottom welding heads are fixed allowing easier profile loading for operators of any height
