Peel force testing machine PRD 3

for plasticsfor PVC windowsfor laboratory

Product
Corner tester designed for quality control of welded PVC corners in profile production lines. Suitable for laboratory and production-line testing to record break force and fracture pattern.

PRD 3-Digital

• PRD 3-Digital corner tester with digital force display
• Designed for control purposes in production environments
• Jerk-free breaking of welded PVC corners using an electro-hydraulic unit
• Force measurement and indication via digital display

Includes (PRD 3-Digital)
Carriage unit WG 1, universally adjustable lamella stamp and test certificate; undercarriage optional.

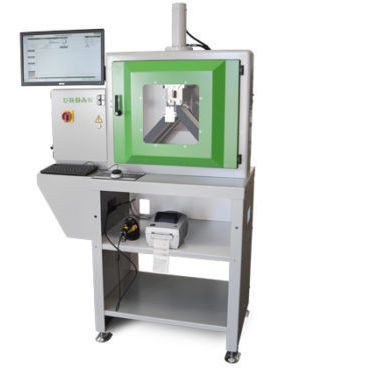

PRD 3-PC

• PRD 3-PC corner tester with integrated PC system
• Jerk-free breaking of welded PVC corners using an electro-hydraulic unit
• Central data acquisition via PC with breaking diagram and break-pattern capture on both sides using an installed camera
• Easy archiving with pre-set profile master data and data connection to machinery/devices
• Bar code label printer for sample corner identification

Includes (PRD 3-PC)
PC, monitor, scanner and bar code printer, CCD camera with illumination, carriage unit WG 1, universally adjustable lamella stamp and test certificate, undercarriage.

Technical specifications

• Category: Corner tester
• Variants: PRD 3-Digital (digital display) and PRD 3-PC (with PC and camera)
• Operation: Electro-hydraulic unit for jerk-free breaking of welded PVC corners
• Measurement: Force indication by digital display (PRD 3-Digital); central data acquisition and breaking diagram (PRD 3-PC)
• Data management: Archiving with pre-set profile master data and connectivity to machinery/devices (PRD 3-PC)
• Identification: Bar code label printer for sample identification (PRD 3-PC)
• Included equipment: Carriage unit WG 1, universally adjustable lamella stamp, test certificate
• Optional: Undercarriage
• Imaging: CCD camera with illumination for break-pattern capture (PRD 3-PC)
