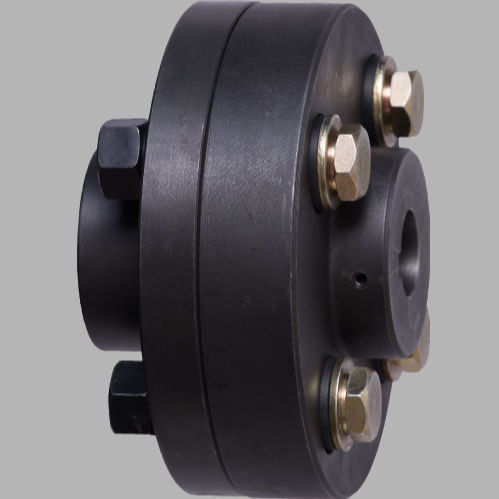

Pin and bush coupling UPB seriestorque
Add to favorites
Compare this product
Characteristics
- Type
- pin and bush
- Other characteristics
- torque
- Torque
Max.: 23,780 Nm
(17,539.22791 ft.lb)Min.: 77 Nm
(56.792285 ft.lb)- Rotational speed
100 rpm, 1,440 rpm, 3,000 rpm
(628.3185 rad.min-1, 9,047.7868 rad.min-1, 18,849.5559 rad.min-1)
Description
Features
1.Better miss-aligning tolérance.
2.Rubber bushes in various materials as Natural, Nitrile,
Polyuréthane etc. are available.
3.Working température up to 70 degree Centigrades.
4.Age old proven concept
5 Rated torque range: 77Nm - 23780Nm
6.Maximum Speed RPM 6100 for UPB 095 to 1080 for UPB 530
7.KW Rating at 100 RPM range: 0.81 - 249 and 11.66 - 0 at 1440 RPM and 24.3 - 0 at 3000RP
