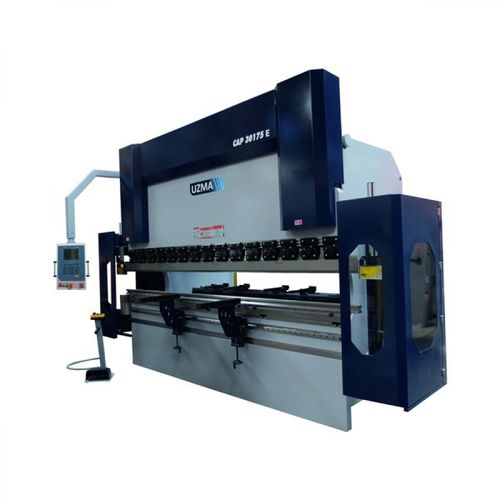

Hydraulic press brake ECNC3-axishigh-speed
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- CNC
- Backgauge
- 3-axis
- Other characteristics
- precision, automatic, high-speed, high-performance
- Press force
Max.: 400 tf
Min.: 40 tf
- Folding length
Max.: 6,100 mm
(240.2 in)Min.: 1,270 mm
(50 in)- Engine power
Max.: 30 kW
(40.79 hp)Min.: 5.5 kW
(7.48 hp)- Daylight
Max.: 650 mm
(26 in)Min.: 387 mm
(15 in)- Maximale stroke
170 mm, 275 mm, 375 mm
(7 in, 11 in, 15 in)
Description
X single axis backgauge
X range 800mm
Our heavy duty backgauge is designed according to the size and tonnage of the machine. X axis (forward/reverse) opérâtes on linear bail bearings and bail screw. Manual R axis (up & down) adjustment is made easly with handle from the top of fingers. Optional X - R backgauge is available on request.
Standard Accessories:
● Y1-Y2-X Axis
● Cybelec DNC 600 2D-Graphical CNC control unit with 2D offline software
● Pendant control panel
● Servo Motorised X-Axis Backgauge
● Heidenhain Linear Scales
● European (Promecam) Quick Release top tool clamping system
● Back Light barrier
● Switched Side protection panels for safety
● Linear sliding front support arms
● High Stroke, High Daylight and High Speed
