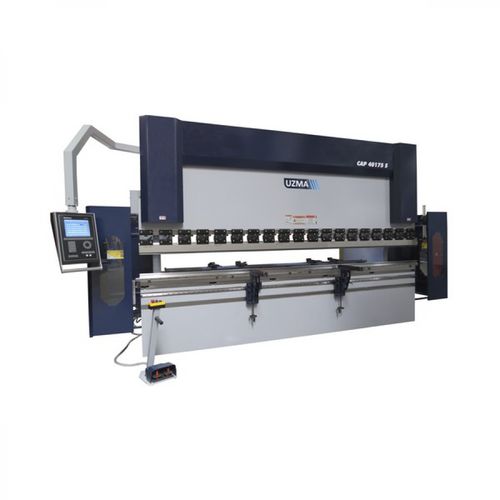

Electric and hydraulic press brake S

CNC3-axis4-axis

CNC controlled motorized crowning system. The crowning system consists of two wave-shaped milled wedge plates. Necessary amount of crowning is calculated by CNC controller and is applied automatically. CNC controlled motorized crowning system. The crowning system consists of two wave-shaped milled wedge plates. Necessary amount of crowning is calculated by CNC controller and is applied automatically. Sliding front support arms 2 pcs. front support arms are sliding on linear guide way and bail bearing system that allows soft movement and latéral adjustment as required by the bending length of the machine. Additional front arms are available as an option. X-R 2 axis Backgauge Our heavy duty backgauge is designed according to the size and tonnage of the machine. X axis (forward/reverse) opérâtes on linear bail bearings and bail screw. R axis (up/down) opérâtes on rack-pinion and linear guiding. Standard Accessories: ● Y1-Y2-X-R Axis & C-Axis (Crowning) ● Delem DA-56 2D Graphical CNC control unit ● Fiesler AKAS Front Laser Safety System ● Pendant control panel ● Servo Motorised 2 Axis Backgauge ● Heidenhain Linear Scales ● European (Promecam) Quick Release top tool clamping system ● CNC Table Crowning System with wedges ● Back Light barrier ● Switched Side protection panels for safety ● Linear sliding front support arms ● High Stroke, High Daylight and High Speed X-R 2 Axis Backgauge
