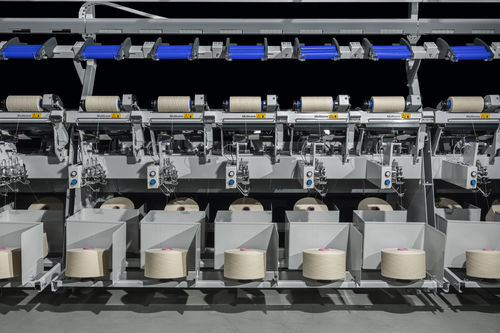

Silk yarn winder Phoenix

yarncone to coneprecision

Overview
The Phoenix assembly winder by Savio is a precision solution for producing packages optimized for downstream twisting and dyeing. Combining Multicone technology with an Electronic Tensioner Device, Phoenix delivers controlled yarn layering, configurable package geometry and flexible feeding options for a range of discontinuous fibre yarns.

Key benefits

• High productivity: winding speed up to 1000 mt/min.
• Controlled package formation: Multicone system with Electronic Tensioner for consistent geometry and density.
• Process flexibility: suitable for Two-for-One Twisters and dyeing-ready soft packages; configurable cone-to-cone winding.

Main features
The Multicone system allows precise adjustment of shape, taper, traverse, diameters and density via PC settings. The machine supports internal feeding for 3-plies assembly and external feeding up to 4 plies or 3+3 with continuous head/tail feeding.

Creel and package handling

• Internal creel: max diameter 250 mm (cylindrical) / 260 mm (conical).
• External creel: universal peg for packages up to 260 mm.
• Configurable as cone-to-cone precision winder or precision winder producing packages for twisting and dyeing.

End-use applications

• Twisting: packages tailored to feed Two-for-One Twisters with optimal metering, uniformity and density.
• Processed yarns: discontinuous fibre yarns including cotton, wool, silk, linen and blends with synthetic fibres; count range in cotton sector Ne 1 to Ne 140.
• Dyeing: capability to produce soft packages prepared for dyeing processes.

Unique selling points

• Compatibility with Two-for-One Twisters
• Production of dyeing-ready soft packages
• Cone-to-cone configuration option for diverse downstream needs

caractéristiques / spécifications techniques

• Model: Phoenix
• Manufacturer / Brand: Savio
• Winding speed: up to 1000 mt/min
• Technology: Multicone system + Electronic Tensioner Device for optimized package formation and controlled yarn layering
• Assembly capability: designed for assembling 3 plies with internal feeding; external feeding up to 4 plies or 3+3 with continuous feeding (head/tail end)
• Internal creel max diameter: 250 mm (cylindrical), 260 mm (conical)
• External creel: universal peg for packages up to 260 mm
• Configurations: precision winder for twisting packages; cone-to-cone precision winder for soft or hard packages
• End-use: Twisting (Two-for-One Twisters), dyeing, cone-to-cone winding
• Yarns processed: discontinuous fibre yarns (cotton, wool, silk, linen and blends)
• Count range (cotton sector): Ne 1 to Ne 140
• Package quality: optimized geometry, density and metering suitable for downstream processes
