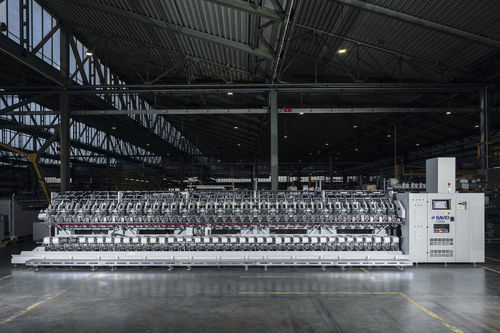

Air-jet spinning machine Lybra Smartspinner®

high-speed

Overview
Savio's air-jet spinning machine Lybra Smartspinner® is designed for versatile production of soft, smooth air-jet spun yarns for knitting, home textiles and sunshades. The machine combines high production rates with low processing costs and user-friendly controls for efficient industrial operation.

Multi Blend System
The Lybra Smartspinner® features the Multi Blend System: two separate slivers are fed directly to the spinning unit instead of a pre-blended sliver. Blend composition can be adjusted from the machine PC, enabling quick changes in material and colour mixing and reducing preparation line costs.

Applications

• Knitting
• Home textiles
• Sunshades

Benefits for customer's competitive advantage

• Versatility: Multi Blend System simplifies sliver management and enables rapid response to market demands.
• Cost saving: Integrated roving, spinning and winding reduce space, labour and energy requirements.
• Easy setting and maintenance: Simplified axis adjustments and roller settings for faster maintenance.
• User experience: Intuitive HMI for straightforward machine control.
• Flexibility: Drumless Multicone System and modular design increase operational flexibility.

Product components
The machine includes the following main components and functional areas:

• Headstock: housing for electrical equipment, package distribution controls and waste collection.
• Machine body: structure divided into 8-spindle sections.
• Package conveyor belt: for package handling and transport.
• Spinning unit: core air-jet spinning unit where yarn is formed.
• Control station: HMI and area for machine settings.
• Doffer: package removal unit.
• Central processing unit: management of machine functions and controls.
• Creel: sliver feeding creel.
• Raised platform: platform for easy operation and access.

Additional notes
Air-jet spinning on Lybra Smartspinner® delivers high throughput and low processing costs while producing yarns suited to both functional and fashion fabrics. The Multi Blend System enables dynamic blend and colour adjustments directly from machine control, improving production flexibility.

Technical specifications

• Technology: Air-jet spinning machine.
• Unique feature: Multi Blend System allowing two separate slivers fed directly to the spinning unit; blend adjustable from machine PC.
• Target applications: Knitting, home textiles, sunshades (melange knits and fabrics).
• Integrated processes: roving, spinning and winding integration for space and labour savings.
• Machine structure: divided into 8-spindle sections.
• User interface: Intuitive HMI for machine management.
• Maintenance: Easy axis adjustments and roller setting.
• Flexibility: Drumless Multicone System for enhanced flexibility.
