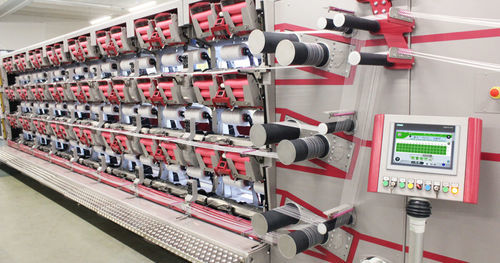

Yarn winding machine B403

motorizedautomaticmulti-spindle

Overview
Automatic constant-tension winder designed for carpet yarn and low-elasticity yarn. Provides constant and adjustable winding tension, precise bobbin length metering and fully automatic doffing.

Features

• For carpet yarn & low elasticity yarn
• Individually driven spindles with DC motors
• Fully automatic doffing
• Individual bobbin length metering for reduced waste

Operation
Each spindle is driven by an individual DC motor. Winding speed is regulated by a yarn tension sensor, ensuring constant and adjustable winding tension and precise bobbin length metering (reducing waste for tufting operations). Individual motors reduce stopping time to as low as 1 second, keeping yarn bundles thread-up in the guides and minimizing downtime after yarn breaks. The tension sensor detects yarn breaks and records tension data to the cloud (TEXCONNECT / Factory 4.0) for process monitoring and traceability.

Technical specifications

• Individual DC motor per spindle
• Winding speed governed by yarn tension sensor
• Constant and adjustable winding tension
• Precise bobbin length metering (reduced waste for tufting)
• Fully automatic doffing
• Stopping time down to 1 second
• Yarn break detection and cloud tension reporting (TEXCONNECT / Factory 4.0)
