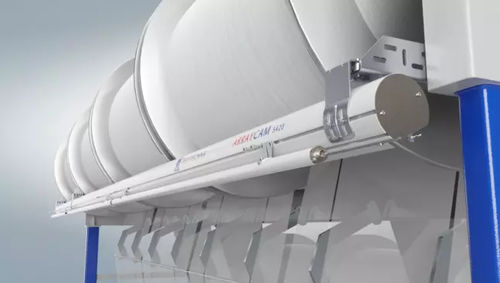

Optical inspection system ARRAYCAM 5420

LEDcameraautomated

Optical Inspection System for Tricot and Raschel Machines The ARRAYCAM 5420 optical inspection system is suitable for monitoring standard fabrics on all common Tricot warp knitting machines and on Raschel machines (simple patterns). It impresses with its high quality and an outstanding price-performance ratio. The warp knitted fabric is monitored with precision cameras, installed dust-protected in a protective profile, directly on the textile machine. The mounted LED lighting ensures a uniform illumination of the warp knitted fabric. When a fault is detected, the machine stops immediately and the area of the defect is indicated by a red light spot on the fabric. - Modular camera system for the knitted fabric inspection on Tricot warp knitting machines and on Raschel machines (simple patterns) - Reliable fault detection with fast reaction times - Easy operation thanks to a multilingual user interface on the control unit Reliable monitoring - Monitoring of Tricot warp knitting machines and Raschel machines (simple patterns) with standard widths 130” to 240”, special widths are available on request - Short defect lengths due to permanent monitoring of the entire fabric width close to the needle bar - Exact determination and display of the fault area by means of red light on the warp knitted fabric - Optional transmitted light for hard-to-detect fault types - Optional connection of up to 8 laser light barriers to the control unit as additional thread break detection Easy installation and commissioning - Installation of the cameras in a factory pre-defined distance to the fabric - No fine adjustment of the camera lenses required - Largely pre-assembled system
